Desktop IP65 IK07 Protection Keyboard With Trackpad 65 Keys

Desktop IP65 IK07 Protection Keyboard With Trackpad 65 Keys

IK07 Protection Keyboard With Trackpad

Desktop Keyboard With Trackpad

Desktop Mini Keyboard With Touchpad

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Keyboard Material:
304 Stainless Steel
Keyboard Dimension:
Protection Level:
IP65, IK07
Installation Type:
Desk Top
Connection Port:
Diameter Of Touchpad:
60*45 Mm
Payment & Shipping Terms
Minimum Order Quantity
1 unit
It depends on quantity
Packaging Details
High quality carton with customized foam inside
Delivery Time
Within 3 working days for sample(US layout)
Payment Terms
T/T.west union
Supply Ability
3000pcs per month
Product Description

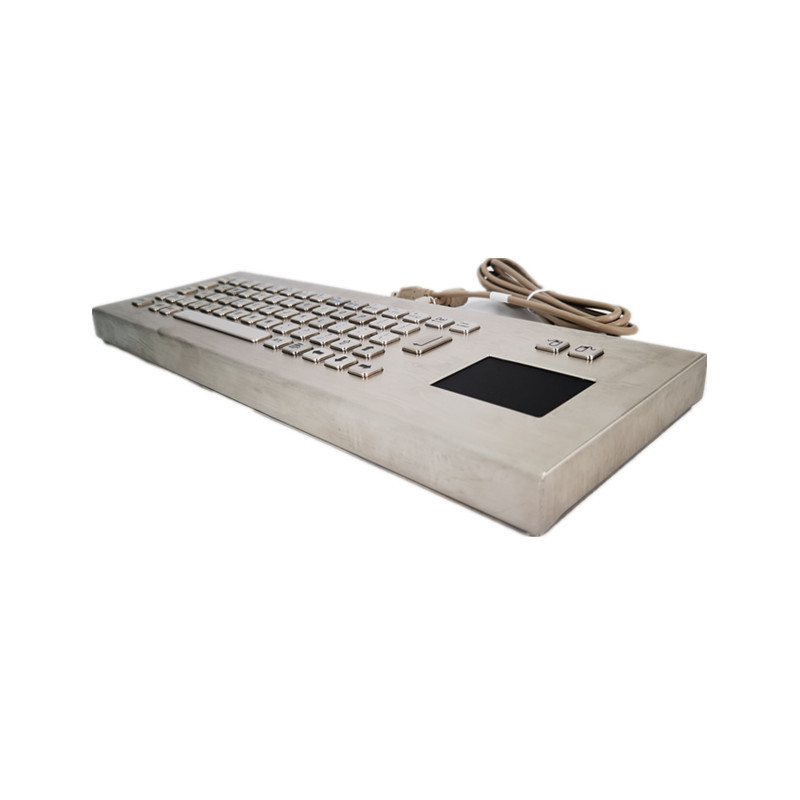

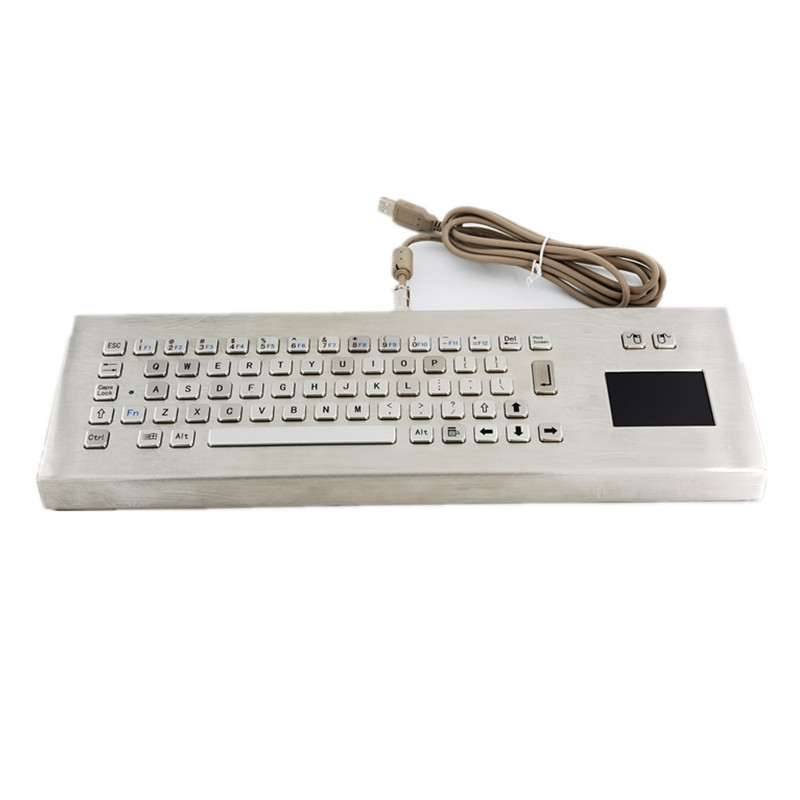

Desktop IP65 IK07 Protection Keyboard With Trackpad 65 Keys


65 Keys Desktop IP65 Self Service Kiosk Stainless Steel Metal Keyboard With Touchpad


Model Number: KMY299G-DESK




KMY299G-DESK is desktop metal keyboard which is made of high quality 304 stainless steel.Different language layout can be customised to meet different requirements on keyboard application. It is widely used on the self-service kiosks, medical devices and industrial equipments which need to be input information.


Desktop Metal Keyboard With Touchpad Features:

Ø  65 keys stainless steel desk top keyboard with touchpad

Ø  Waterproof and dustproof

Ø  Very rugged vandal proof design

Ø  Can be cleaned with soapy water, disinfectant or other cleaning agents


Electrical Data
Electric Current 10 mA
EMC Emission EN55022
ESD Standard Air Discharge 8KV; Contact Discharge 6KV
Input Voltage 5.0VDC±5%


Desktop Metal Keyboard With Trackball Reliability:

Ø MTBF: >20,000 hours

Ø MTTR: < 30 minutes

Ø CE, FCC, RoHS, ESD compliant

Ø Waterproof and Dustproof class: IP65 (front panel)

Ø Vandal resistant class: IK07


Mechanical Data
Key Trip 1.5 mm
Key Pressure 0.8~1.6 N
Lifespan >2 million operations per key
Gross Weight 2.5~4.0 KGS


Environmental Adaptability:

Ø Operating Temperature: 0°~+60°

Ø Storage Temperature: -25°~+80°

Ø Relative humidity: 30%~90%

Ø Atmospheric pressure: 60~106 KPa


Desktop IP65 IK07 Protection Keyboard With Trackpad 65 Keys 0

Desktop IP65 IK07 Protection Keyboard With Trackpad 65 Keys 1








Q: How to ensure the quality of the products?

A: Every piece of our products will be under strict and repeat tests before delivery.And representative inspector will be welcomed.


Q: How is the shipping?

A: Generally speaking, your order will be delivered within 2-5 working days after the details are confirmed.


Q: How will you deliver the products?

A: We can deliver by express, by sea, by air or at you request.
