IP65 IK07 Vending Kiosk Stainless Steel Keypad 3x4 12 Keys Access Control

3x4 12 Keys Access Control IP65 IK07 Vending Kiosk Stainless Steel Metal Numeric Keypad

Faceplate Dimensions(W×H): 92×76.5mm

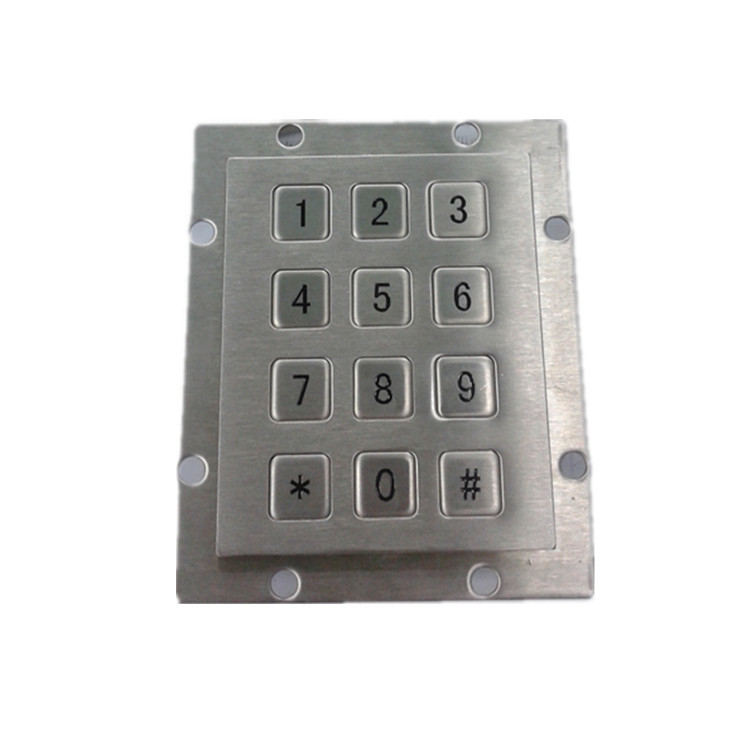

KMY3502J-1 model keypad is a stainless steel keypad with both numeric and function keys.The layout with function keys could be customized into any language. It is plug and play metal keypad, rear mounting installation .

Application

Ø   Check-in Kiosk

Ø   Boarding Kiosk

Ø   Info-Kiosk

Ø   Internet Kiosk

Ø   Medical Kiosk

Ø   Industrial control platform

Ø   Gaming machine

Ø   Access control platform

Features

Ø  High quality stainless steel keypad with trackball

Ø  Customizable layout, dimension and installation design

Ø  16 keys: 10 numeric keys and 6 function keys

Ø  Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof

Ø  Ports for optional eight external function keys, beeper and guide light

Ø  IP Protection Class IEC/DIN/EN/ 60529:IP65

Ø  IK Protection Class DIN EN 50102:IK07

Reliability and Performance Data

Ø  Key lifetime > 2,000,000 cycles per key

Ø  Force on keys: 2.5~3.5 N

Ø  Key travel: >0.45mm

Ø  Wide voltage input: 5V DC +/- 10%

Ø  Running lifetime > 5 years; Battery lifetime > 5 years (without external power supply)

Environment Requirements

Ø  Only the front panels shall be exposed to outdoor climate. The panels are dustproof, waterproof, shake-proof, pickproof, drill-proof and bombproof.

Ø  Operating temperature range: 0℃‑ 60℃

Ø  Storage temperature range: –25℃ - 80℃

Ø  Relative humidity: 30%～90%

Ø  Atmospheric pressure: 60～106 KPa
