Place of Origin:
China
Brand Name:
KMY
Certification:
CE, FCC, ROHS
Model Number:
KMY3501B-GM
Contact Us

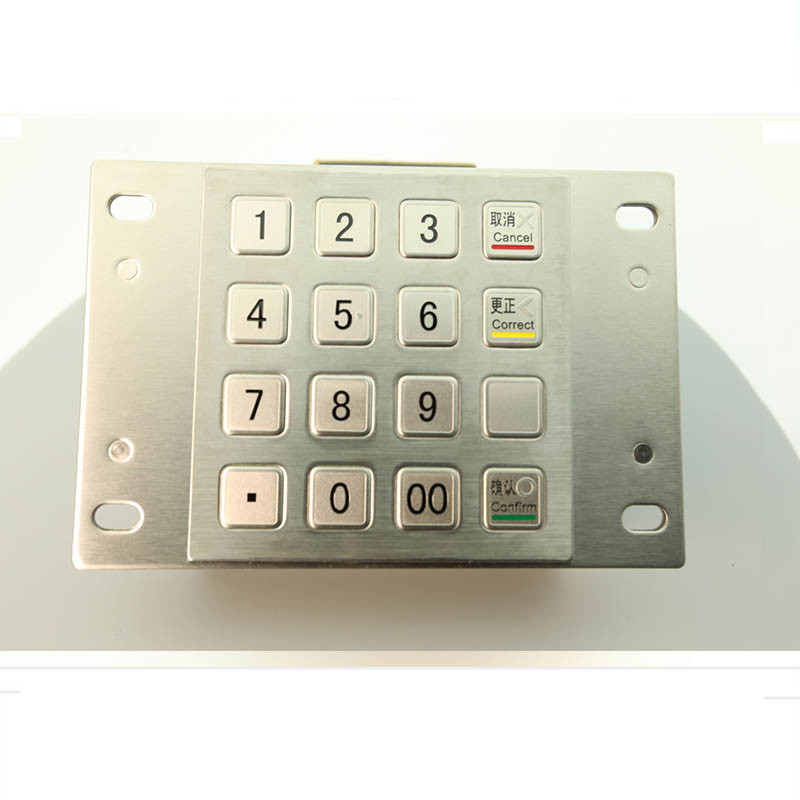

Payment Kiosk IP65 EPP Pin Pad 304 Stainless Steel Encrypted Keypad
IP65 Waterproof Payment Kiosk EPP Pin Pad 304 Stainless Steel Encrypted Metal Keypad
EPP Metal Keypad Description
Model No.: KMY3501B-GM
Faceplate dimensions: 87.5 x 91.5 mm
Interface: RS232 or USB
EPP Metal Pin Pad Features
Ø 3DES Encrypted PIN Pad made of high quality stainless steel
Ø Customizable layout, dimension and installation design
Ø 16 keys: 10 numeric keys and 6 function keys
Ø Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof
Ø Braille key design for visually handicapped people
Ø Ports for optional 8 external function keys, beeper and guide light
Ø Tamper Detection and Protection
Ø IP Protection Class IEC/DIN/EN/ 60529:IP65 (front panel)
Ø IK Protection Class DIN EN 50102:IK07
Supported Algorithms
Ø DES user data ECB/CBC encryption/decryption
Ø 3DES user data ECB/CBC encryption/decryption
Ø DES MAC calculation
Ø 3DES MAC calculation
Ø DES PIN encryption
Ø 3DES PIN encryption
Ø Multiple PIN Block formats: ANSI, ISO0, ISO1, ECI2, ISO3, IBM3624, DIEBOLD, DIEBOLDCO
Specification of Encrypted Pin Pad
|
Mechanical Performance |
|
|
Panel Features |
Imported stamping stainless steel material, oil-free, does not absorb sweat |
|
Keys |
Stainless steel material |
|
Key lifespan |
>3 Million times long life use |
|
Key Pressure |
2~3N strong bearing |
|
Key Travel |
0.45mm |
|
Key Fonts |
etched and durable ink, solid |
|
Activation Dynamics |
50g |
|
Protection Capacity |
Sensitive data securely be kept over 5 years when power-off |
Environment Requirements
1. Operating temperature range: 25-65
2. Storage temperature range: 25-65
3. Maximum humidity in operating environment: 80%
4. For security reasons, the secure information will be deleted when the environment temperature is beyond the storage temperature range.
| Electrical Performance | |
| Interfaces Type | RS232 port, baud rate: 9600, no odd-even; standard USB2.0 port |
| Power Supply | DC5V+10% |
| Power consumption | <0.5W (dynamic), <0.2W(static) |
| Reliability | MTBF: >30,000H; MTTR: <30 min |
FAQ
1. Q: How to ensure the quality of the products?
A: Every piece of our products will be under strict and repeat tests before delivery.And representative inspector will be welcomed.
2. Q: How is the lead time?
A: Generally speaking, your order will be delivered within 2-5 working days after the details are confirmed.
3. Q: How will you deliver the products?
A: We can deliver by express, by sea, by air or at you request.
