Place of Origin:
China
Brand Name:
KMY
Certification:
CE,ROHS,FCC
Model Number:
KMY299B-1-T
Contact Us

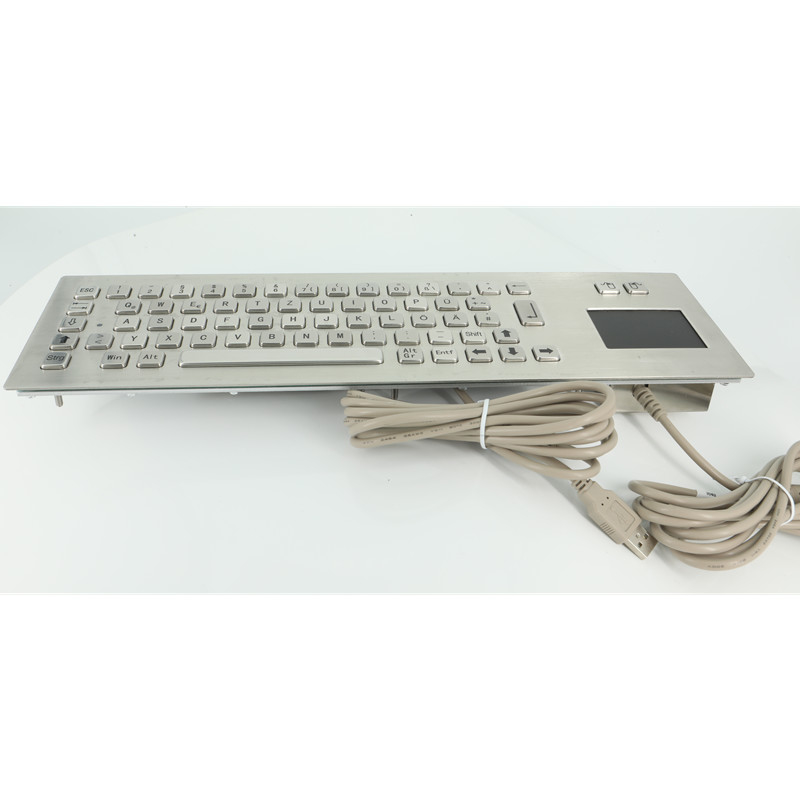

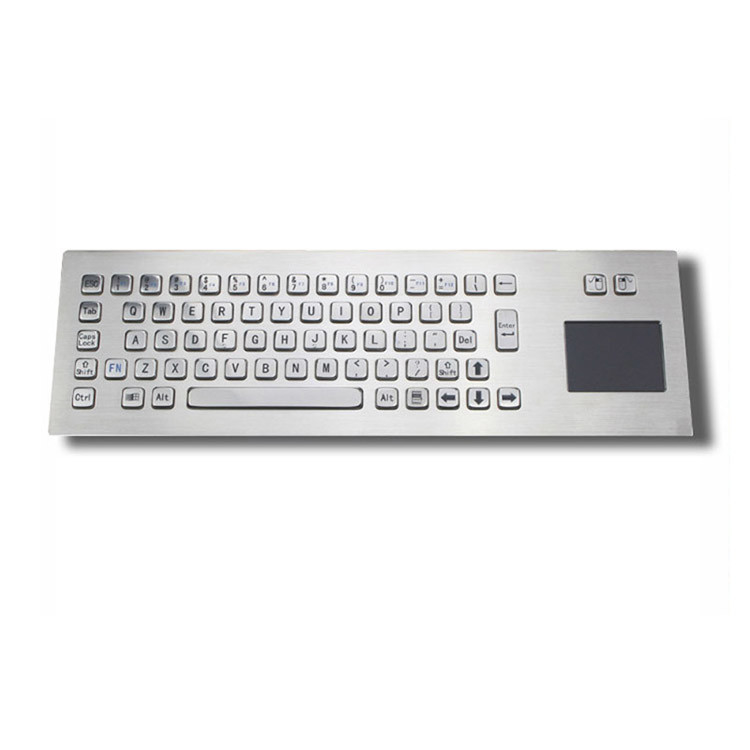

Panel Mounting IP65 QWERTY Industrial Keyboard With Touchpad Stainless Steel Metal Keyboard
Faceplate Dimensions(W×H):400×124mm
KMY299B-1-T is made of high quality 304 stainless steel.Different language layout is available without additional charge.PS2 and USB interface can be optional.It is widely used on self-service kiosks and industrial equipment which need to be input information.
Metal Keyboards With Touchpad Features:
Ø 65 keys stainless steel panel mounting keyboard with trackball
Ø Support OS: Windows 95/98/NT/ME/2000/2003/XP/Vista, Linux and Unix
Ø Customized layout available
Ø Lettering by etching and inking, or laser technology
Ø Carbon-on-Gold key switch technology (silicon gel)
Ø Mechanical/ Optical trackball optional
Ø Waterproof and dustproof
Metal Keyboards With Touchpad Material:
Ø Front Panel: High quality 304# stainless steel
Ø Keys: High quality 304# stainless steel
Ø Trackball: High quality 304# stainless steel
Ø Back panel: Aluminum alloy
| Electrical Data | |
| Electric Current | 10 mA |
| EMC Emission | EN55022 |
| ESD Standard | Air Discharge 8KV; Contact Discharge 6KV |
| Input Voltage | 5.0VDC±5% |
Metal Keyboards With Touchpad Reliability:
Ø MTBF: >20,000 hours
Ø MTTR: < 30 minutes
Ø CE, FCC, RoHS, ESD compliant
Ø Waterproof and Dustproof class: IP65 (front panel)
Ø Vandal resistant class: IK07
| Mechanical Data | |
| Key Trip | 1.5 mm |
| Key Pressure | 0.8~1.6 N |
| Lifespan | >2 million operations per key |
| Gross Weight | 2.0 KGS |
Environmental Adaptability:
Ø Operating Temperature: 0°～+60°
Ø Storage Temperature: -25°～+80°
Ø Relative humidity: 30%～90%
Ø Atmospheric pressure: 60～106 KPa
FAQ
1. Q: How to ensure the quality of the products?
A: Every piece of our products will be under strict and repeat tests before delivery.
2. Q: How is the shipping?
A: Generally speaking, your order will be delivered within 3-5 working days after the details are confirmed.
3. Q: How will you deliver the products?
A: We can deliver by express, by sea, by air or at you request.
