Place of Origin:
China
Brand Name:
KMY
Certification:
CE,ROHS,FCC
Model Number:
KMY299B
Contact Us

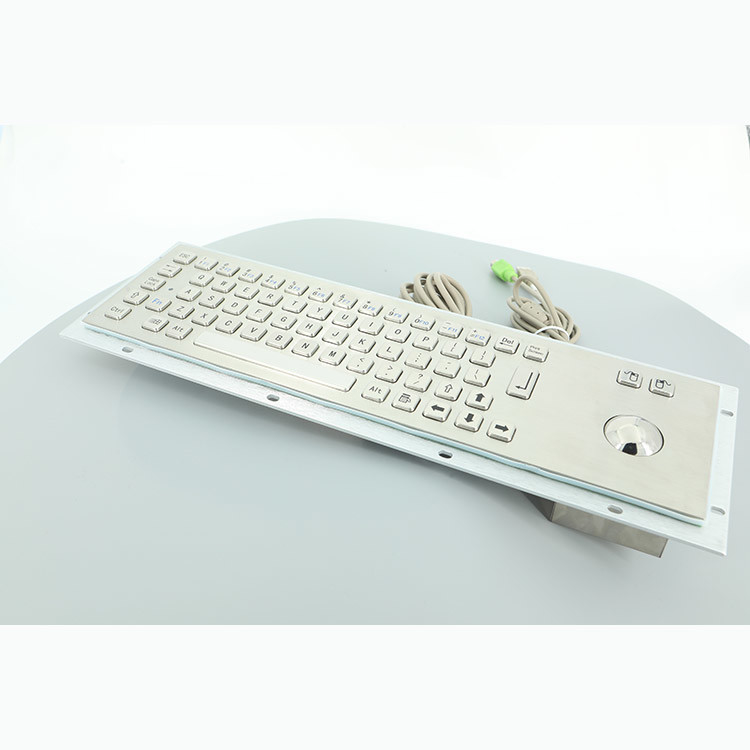

65 Keys IP65 Self Service Kiosk QWERTY Stainless Steel Metal Keyboards With Trackball
Model Number: KMY299B
Faceplate Dimensions(W×H):392×110mm
KMY299B is made of high quality 304 stainless steel.Different language layout is available without additional charge.PS2 and USB interface can be optional.It is widely used on the kiosks and industrial equipments which need to be input varied informations.
Industrial Keyboard With Mechanical Trackball Features:
Ø 65 keys stainless steel rear mounting keyboard with trackball
Ø Support OS: Windows 95/98/NT/ME/2000/2003/XP/Vista, Linux and Unix
Ø Customized layout available
Ø Lettering by etching and inking, or laser technology
Ø Carbon-on-Gold key switch technology (silicon gel)
Ø Mechanical/ Optical trackball optional
Ø Waterproof and dustproof
Ø Very rugged vandal proof design
|
Electrical Data |
|
|
Electric Current |
10 mA |
|
EMC Emission |
EN55022 |
|
ESD Standard |
Air Discharge 8KV; Contact Discharge 6KV |
|
Input Voltage |
5.0VDC±5% |
Industrial Keyboard With Mechanical/Optical Trackball Material:
Ø Front Panel: High quality 304# stainless steel
Ø Keys: High quality 304# stainless steel
Ø Trackball: High quality 304# stainless steel

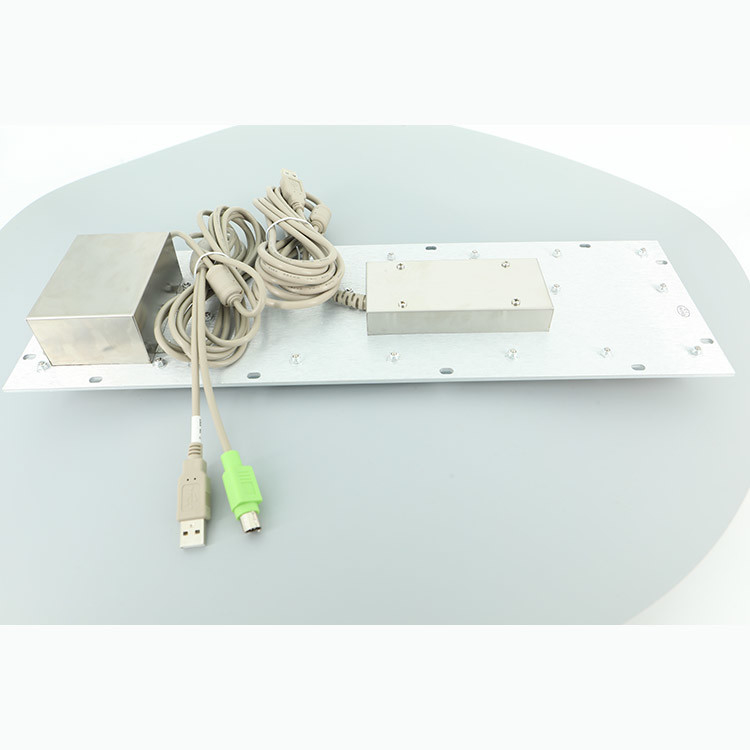

Ø Back panel: Aluminum alloy
|
Mechanical Data |
|
|
Key Trip |
1.5 mm |
|
Key Pressure |
0.8~1.6 N |
|
Lifespan |
>2 million operations per key |
|
Gross Weight |
2.0 KGS |
Reliability:
Ø MTBF: >20,000 hours
Ø MTTR: < 30 minutes
Ø CE, FCC, RoHS, ESD compliant
Ø Waterproof and Dustproof class: IP65 (front panel)
Ø Vandal resistant class: IK07
Environmental Adaptability:
Ø Operating Temperature: 0°～+60°
Ø Storage Temperature: -25°～+80°
Ø Relative humidity: 30%～90%
Ø Atmospheric pressure: 60～106 KPa
FAQ
1. Q: How to ensure the quality of the products?
A: Every piece of our products will be under strict and repeat tests before delivery.
2. Q: How is the delivery time?
A: Generally speaking, your order will be delivered within 3-5 working days after the details are confirmed.
3. Q: How will you deliver the products?
A: For samples or small orders, we'd like to recommend to ship by express and we have good cooperation with DHL,UPS,FEDEX and TNT.
For large volume orders, we can also arrange shipping by air or sea.
