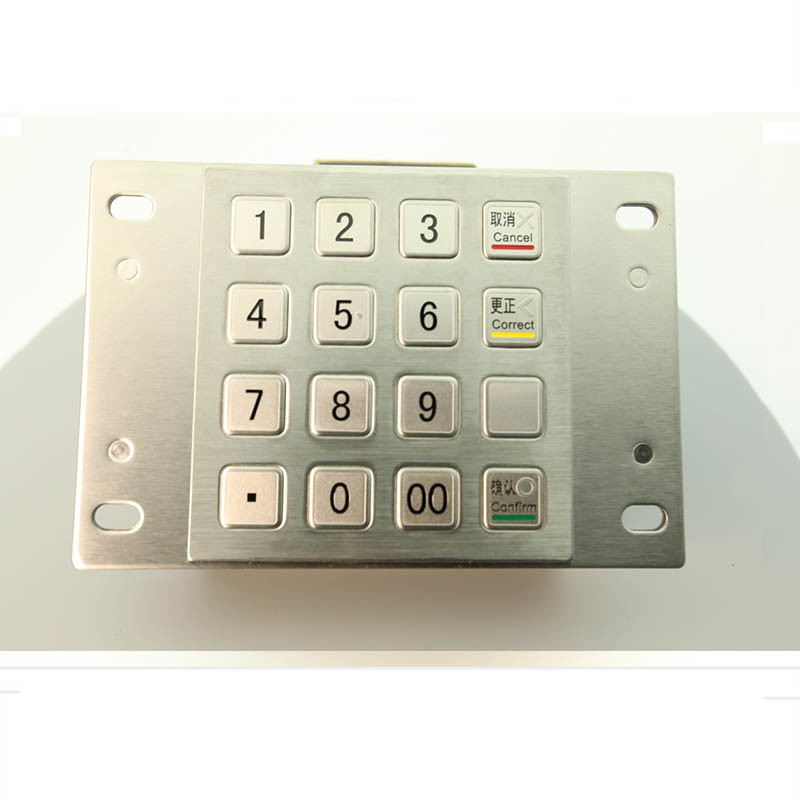

16 Keys IP65 304 Stainless Steel Encrypted Metal Pin Pad USB Payment Kiosk

16 Keys IP65 304 Stainless Steel Encrypted Metal Pin Pad USB Payment Kiosk

IP65 Metal Pin Pad

Encrypted Metal Pin Pad

Payment Kiosk Encrypted Pin Pad

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
304 Stainless Steel
Keypad Port:
USB Or RS232
Keypad Layout:
Customized (free Of Charge)
87.5 X 91.5 Mm
Protection Level:
IP65, IK07
Payment & Shipping Terms
Minimum Order Quantity
$40.00 - $146.00 / Unit
Packaging Details
Delivery Time
Payment Terms
Supply Ability
5000pcs per month
Product Description

16 Keys IP65 Waterproof USB Payment Kiosk 304 Stainless Steel Encrypted Metal Pin Pad


IP65 Waterproof 304 Stainless Steel Encrypted Pin Pad USB RS232 Payment ATM EPP Keypad


EPP Metal Keypad Description

Model No.: KMY3501B-GM

Faceplate dimensions: 87.5 x 91.5 mm

Interface: RS232 or USB


EPP Keypad Features

Ø 3DES Encrypted PIN Pad made of high quality stainless steel

Ø Customizable layout, dimension and installation design

Ø 16 keys: 10 numeric keys and 6 function keys

Ø Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof

Ø Braille key design for visually handicapped people

Ø Ports for optional 8 external function keys, beeper and guide light

Ø Tamper Detection and Protection

Ø IP Protection Class IEC/DIN/EN/ 60529:IP65 (front panel)

Ø IK Protection Class DIN EN 50102:IK07


Supported Algorithms

Ø DES user data ECB/CBC encryption/decryption

Ø 3DES user data ECB/CBC encryption/decryption

Ø DES MAC calculation

Ø 3DES MAC calculation

Ø DES PIN encryption

Ø 3DES PIN encryption

Ø Multiple PIN Block formats: ANSI, ISO0, ISO1, ECI2, ISO3, IBM3624, DIEBOLD, DIEBOLDCO


Specification of Encrypted Pin Pad

Mechanical Performance

Panel Features

Imported stamping stainless steel material, oil-free, does not absorb sweat


Stainless steel material

Key lifespan

>3 Million times long life use

Key Pressure

2~3N strong bearing

Key Travel


Key Fonts

etched and durable ink, solid

Activation Dynamics


Protection Capacity

Sensitive data securely be kept over 5 years when power-off



Environment Requirements

1. Operating temperature range: 25-65

2. Storage temperature range: 25-65

3. Maximum humidity in operating environment: 80%

4. For security reasons, the secure information will be deleted when the environment temperature is beyond the storage temperature range.


Electrical Performance
Interfaces Type RS232 port, baud rate: 9600, no odd-even; standard USB2.0 port
Power Supply DC5V+10%
Power consumption <0.5W (dynamic), <0.2W(static)
Reliability MTBF: >30,000H; MTTR: <30 min


16 Keys IP65 304 Stainless Steel Encrypted Metal Pin Pad USB Payment Kiosk 0

16 Keys IP65 304 Stainless Steel Encrypted Metal Pin Pad USB Payment Kiosk 1



1. Q: How to ensure the quality of the products?

A: Every piece of our products will be under strict and repeat tests before delivery.


2. Q: How is the delivery time?

A: Generally speaking, your order will be delivered within 3-5 working days after the details are confirmed.


3. Q: How will you deliver the products?

A: For samples or small orders, we'd like to recommend to ship by express and we have good cooperation with DHL,UPS,FEDEX and TNT.
For large volume orders, we can also arrange shipping by air or sea.
