Place of Origin:
China
Brand Name:
KMY
Certification:
CE, FCC, ROHS
Model Number:
KMY3501B-GM
Contact Us

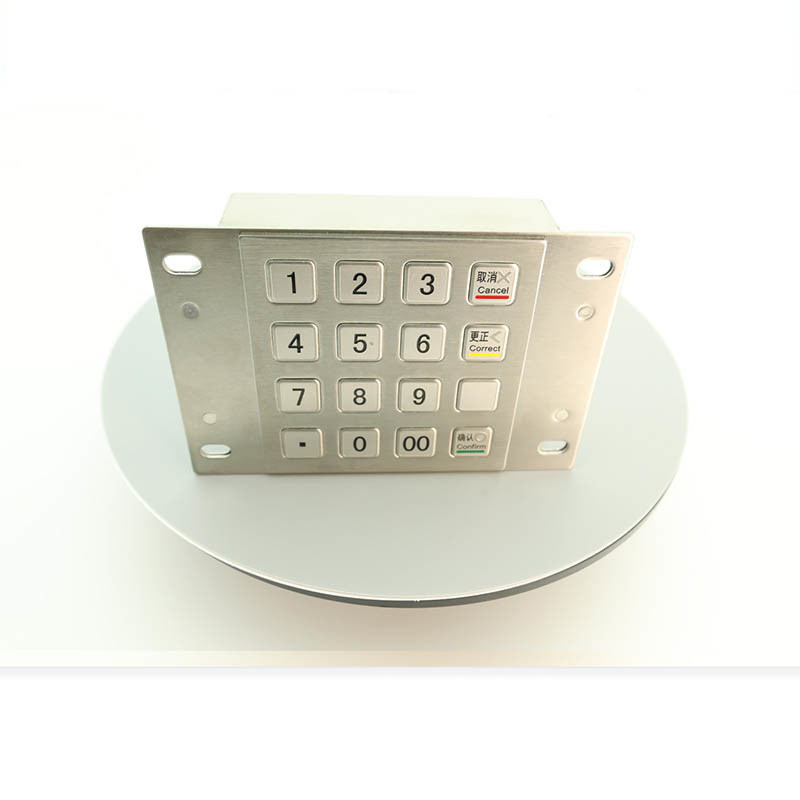

Payment Kiosk EPP Pin Pad IP65 Rugged 304 Stainless Steel Encrypted Metal Keypad
EPP Metal Keypad Description
Model No.: KMY3501B-GM
Faceplate dimensions: 87.5 x 91.5 mm
Interface: RS232 or USB
EPP Metal Pin Pad Features
Ø 3DES Encrypted PIN Pad made of high quality stainless steel
Ø Customizable layout, dimension and installation design
Ø 16 keys: 10 numeric keys and 6 function keys
Ø Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof
Ø Braille key design for visually handicapped people
Ø Ports for optional 8 external function keys, beeper and guide light
Ø Tamper Detection and Protection
Ø IP Protection Class IEC/DIN/EN/ 60529:IP65 (front panel)
Ø IK Protection Class DIN EN 50102:IK07
Supported Algorithms
Ø DES user data ECB/CBC encryption/decryption
Ø 3DES user data ECB/CBC encryption/decryption
Ø DES MAC calculation
Ø 3DES MAC calculation
Ø DES PIN encryption
Ø 3DES PIN encryption
Ø Multiple PIN Block formats: ANSI, ISO0, ISO1, ECI2, ISO3, IBM3624, DIEBOLD, DIEBOLDCO
Specification of Encrypted Pin Pad
Mechanical Performance |
|
Panel Features |
Imported stamping stainless steel material, oil-free, does not absorb sweat |
Keys |
Stainless steel material |
Key lifespan |
>3 Million times long life use |
Key Pressure |
2~3N strong bearing |
Key Travel |
0.45mm |
Key Fonts |
etched and durable ink, solid |
Activation Dynamics |
50g |
Protection Capacity |
Sensitive data securely be kept over 5 years when power-off |
Environment Requirements
1. Operating temperature range: 25-65
2. Storage temperature range: 25-65
3. Maximum humidity in operating environment: 80%
4. For security reasons, the secure information will be deleted when the environment temperature is beyond the storage temperature range.
Electrical Performance | |
Interfaces Type | RS232 port, baud rate: 9600, no odd-even; standard USB2.0 port |
Power Supply | DC5V+10% |
Power consumption | <0.5W (dynamic), <0.2W(static) |
Reliability | MTBF: >30,000H; MTTR: <30 min |
FAQ
1. Q: How to ensure the quality of the products?
A: Every piece of our products will be under strict and repeat tests before delivery.And representative inspector will be welcomed.
2. Q: How is the lead time?
A: Generally speaking, your order will be delivered within 2-5 working days after the details are confirmed.
3. Q: How will you deliver the products?
A: We can deliver by express, by sea, by air or at you request.
