ATM Payment Kiosk Encrypted Metal EPP Pin Pad With 16 Keys USB RS232

ATM Payment Kiosk Encrypted Metal EPP Pin Pad With 16 Keys USB RS232

16 Keys EPP Pin Pad

RS232 EPP Pin Pad

EPP Kiosk Metal Keyboard

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Keypad Material:
304 Stainless Steel
Encryption Algorithm:
Connection Interface:
USB Or RS232
Front Panel Dimension:
100 X 100 Mm
Protection Level:
IP65, IK07
Payment & Shipping Terms
Minimum Order Quantity
1 unit
$40.00 - $146.00 / Unit
Packaging Details
Delivery Time
Payment Terms
Supply Ability
5000pcs per month
Product Description

Payment Kiosk Encrypted Keypad USB RS232 ATM EPP Pin Pad with 16 Keys ​


ATM Metal Pin Pad Encrypted EPP with 16 Keys Payment Terminal Keypad Banking Kiosk Pinpad

Model No.: KMY3501D-GM


Faceplate dimensions: 100 x 100 mm


Interface: RS232 or USB


Specification of Encrypted Pin Pad

Ø 3DES Encrypted PIN Pad made of high quality stainless steel

Ø 16 keys: 10 numeric keys and 6 function keys

Ø Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof

Ø Tamper Detection and Protection

Ø IP Protection Class IEC/DIN/EN/ 60529:IP65 (front panel)

Ø IK Protection Class DIN EN 50102:IK07


Supported Algorithms

Ø DES user data ECB/CBC encryption/decryption

Ø 3DES user data ECB/CBC encryption/decryption

Ø DES MAC calculation

Ø 3DES MAC calculation

Ø DES PIN encryption

Ø 3DES PIN encryption

Ø Multiple PIN Block formats: ANSI, ISO0, ISO1, ECI2, ISO3, IBM3624, DIEBOLD, DIEBOLDCO


Mechanical Performance
Panel Features Imported stamping stainless steel material, oil-free, does not absorb sweat
Keys Stainless steel material
Key lifespan >3 Million times long life use
Key Pressure 2~3N strong bearing
Key Travel 0.45mm
Key Fonts etched and durable ink, solid
Activation Dynamics 50g
Protection Capacity Sensitive data securely be kept over 5 years when power-off



Environment Requirements

1. Operating temperature range: 25-65

2. Storage temperature range: 25-65

3. Maximum humidity in operating environment: 80%

4. For security reasons, the secure information will be deleted when the environment temperature is beyond the storage temperature range.


Electrical Performance
Interfaces Type RS232 port, baud rate: 9600, no odd-even; standard USB2.0 port
Power Supply DC5V+10%
Power consumption <0.5W (dynamic), <0.2W(static)
Reliability MTBF: >30,000H; MTTR: <30 min

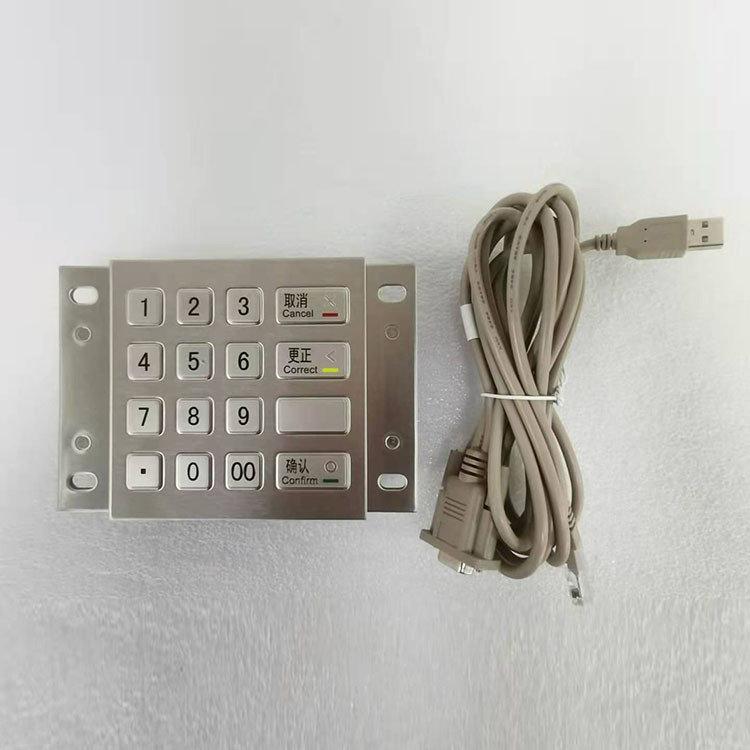

ATM Payment Kiosk Encrypted Metal EPP Pin Pad With 16 Keys USB RS232 0

ATM Payment Kiosk Encrypted Metal EPP Pin Pad With 16 Keys USB RS232 1





Q. How can we guarantee quality?

Always a pre-production sample before mass production

Always final Inspection before shipment



Q: How long is the warranty period?

1 year since production date



Q: How will you deliver the products?

We can deliver by express, by sea, by air or at you request.
