Place of Origin:
China
Brand Name:
KMY
Certification:
CE, FCC, ROHS
Model Number:
KMY3501A
Contact Us

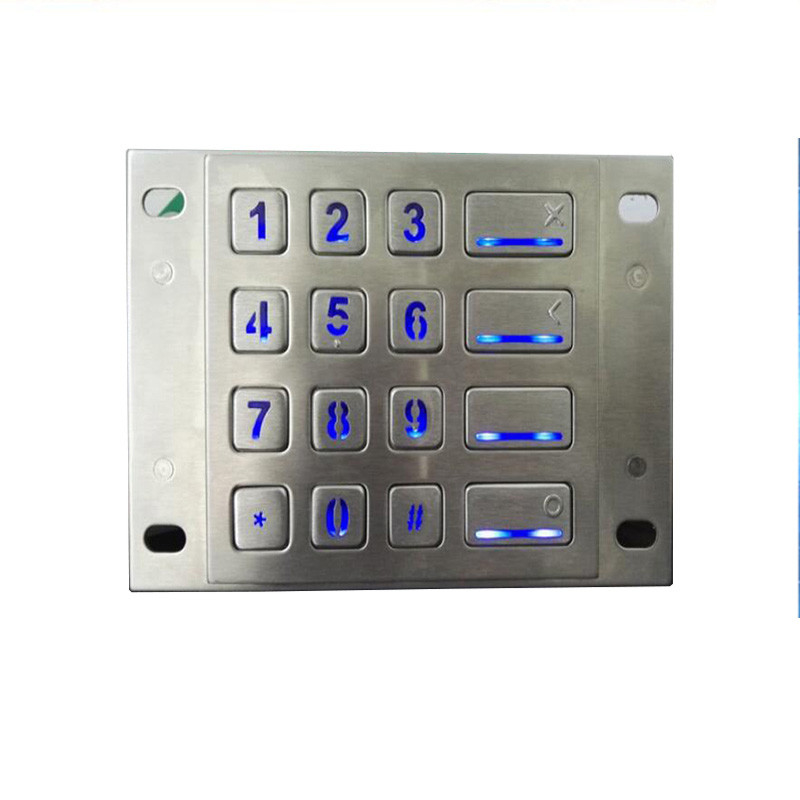

Self Service Kiosk Waterproof SS304 Backlit Number Pad With 16 Keys
Backlit Waterproof Stainless Steel Metal Keypad with 16 Keys Self-service Kiosk Numeric Keypad with Backlight
Model No.: KMY3501A
Faceplate dimensions: 100 x 91.5 mm
Interface: PS/2 or USB
Structure
The KMY Metal Keypad is mainly constructing with the components as bellow:
1. 16 pieces of stainless steel keycaps
2. Stainless steel frame
3. Tamper resistant secure box
4. Main board, all electronic components are layout on the board
5. It can be applied to different ATMs / Kiosks.
Appearance
1. Keypad made of high quality stainless steel
2. Customizable layout, dimension and installation design
3. Braille key design for visually handicapped people
Environment Requirements
Ø Operating temperature range: 0℃~ 60℃
Ø Storage temperature range: -25℃ ~ 80℃
Ø Relative humidity: 30%～90%
Ø Atmospheric pressure: 60～106 KPa
Ø For security reasons, the user PIN is deleted when the environment temperature is beyond the storage temperature range. The target level for this function is set to –30℃.
Approvals:
Ø Pass the certification of China Central Bank card testing center;
Ø CE, RoHS, FCC
| Mechanical Performance | |
| Panel Features | Imported stamping stainless steel material, oil-free, does not absorb sweat |
| Keys | Stainless steel material |
| Key lifespan | >3 Million times long life use |
| Key Pressure | 2~3N strong bearing |
| Key Travel | 0.45mm |
| Key Fonts | etched and durable ink, solid |
| Activation Dynamics | 50g |
| Protection Capacity | Sensitive data securely be kept over 5 years when power-off |
| Electrical Performance | |
| Interfaces Type | RS232 port, baud rate: 9600, no odd-even; standard USB2.0 port |
| Power Supply | DC5V+10% |
| Power consumption | <0.5W (dynamic), <0.2W(static) |
| Reliability | MTBF: >30,000H; MTTR: <30 min |
