EN55022 Backlit Numeric Keypad IK07 Windows 95 OS All Metal Keyboard

EN55022 Backlit Numeric Keypad IK07 Windows 95 OS All Metal Keyboard

IK07 All Metal Keyboard

EN55022 Backlit Numeric Keypad

Windows 95 all metal keyboard

Place of Origin:

China

Brand Name:

KMY

Certification:

CE, FCC, ROHS

Model Number:

KMY299B-BG

Contact Us

Request A Quote
Product Details
Place Of Origin:
Guangdong China
Material:
Metal
Certification:
CE, RoHS, FCC
Cable:
USB
Layout:
Customized
Warranty:
1 Year
Size:
392x110 Mm
Application:
Banking Equipment, Banking Equipment, ATM
Keystroke Life Time:
> 2,000,000
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$40.00 - $146.00 / Unit
Packaging Details
carton
Delivery Time
5-15days
Payment Terms
T/T
Supply Ability
5000pcs per month
Product Description

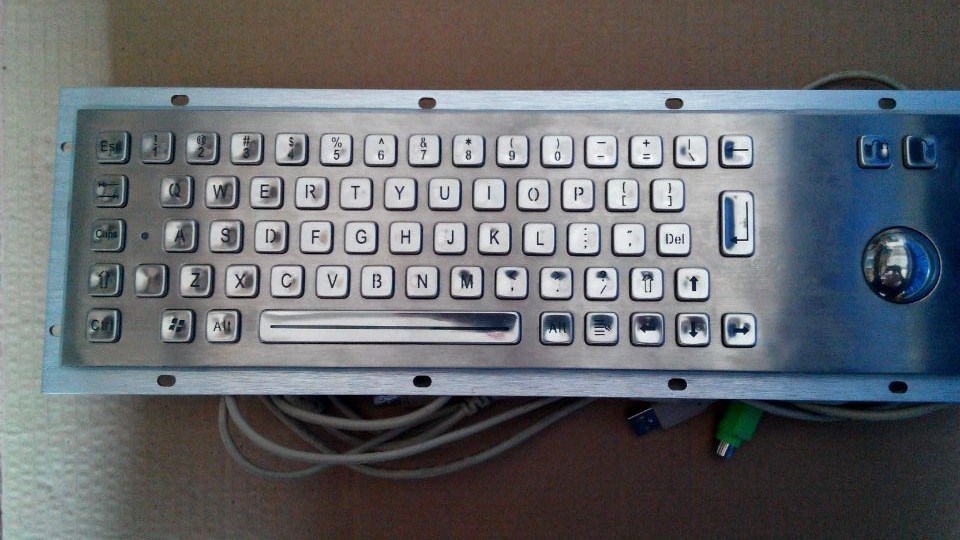

IP65 Waterproof Kiosk Back-light Numeric Keypad Backlit 65 Keys Stainless Steel Metal Keyboard with Trackball

Model No.: KMY299B-BG







Dimensions:



  • Front Panel: 392 x 110mm
  • Overall: 415 x 134mm
  • Diameter of trackball: 38mm







Interface: USB or PS/2







Outstanding Features:



  • 67 keys stainless steel panel mounting keyboard with trackball
  • Support OS: Windows 95/98/NT/ME/2000/2003/XP/Vista, Linux and Unix
  • Customized layout available
  • Lettering by etching and inking, or laser technology
  • Carbon-on-Gold key switch technology (silicon gel)
  • Mechanical/ Optical trackball optional
  • Waterproof and dustproof
  • Very rugged vandal proof design
  • Can be cleaned with soapy water, disinfectant or other cleaning agents







Material:



  • Front Panel: High quality 304# stainless steel
  • Keys: High quality 304# stainless steel
  • Trackball: High quality 304# stainless steel
  • Back panel: Aluminum alloy







Mechanical Data:



  • Key trip: 1.5mm
  • Key pressure: 0.8~1.6 N
  • Lifespan: >2 million operations per key
  • Gross Weight: 2.0 KGS







Electrical Data:



  • Input Voltage: 5.0VDC±5%
  • Electric Current: 10mA
  • EMC Emission: EN55022
  • ESD Standard: Air Discharge 8KV; Contact Discharge 6KV







Environmental Adaptability:



  • Operating Temperature: ~+6
  • Storage Temperature: -25°~+8
  • Relative humidity: 30%~90%
  • Atmospheric pressure: 60~106 KPa







Reliability:



  • MTBF: >20,000 hours
  • MTTR: < 30 minutes
  • CE, FCC, RoHS, ESD compliant
  • Waterproof and Dustproof class: IP65 (front panel)
  • Vandal resistant class: IK07
