3.6N ATM Machine Number Pad 6 Function Keys ATM Keypad

3.6N ATM Machine Number Pad 6 Function Keys ATM Keypad

6 Function Keys atm keypad

3.6N ATM Machine Number Pad

KMY ATM Machine Number Pad

Place of Origin:


Brand Name:



PCI 4.0

Model Number:


Contact Us

Request A Quote
Product Details
Place Of Origin:
Guangdong China
1 Year
160x102.4 Mm
Banking Equipment, Banking Equipment, ATM
Keystroke Life Time:
> 2,000,000
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
Delivery Time
Payment Terms
Supply Ability
5000pcs per month
Product Description

PCI 4.0 Certified Encrypted Metal EPP Numeric Pin Pad with Function Keys Metal Keypad



1. PCI 4.0 EPP ATM key pad

2. Pass the certification of China Central Bank card testing center

3. CE, RoHS, FCC


Main function

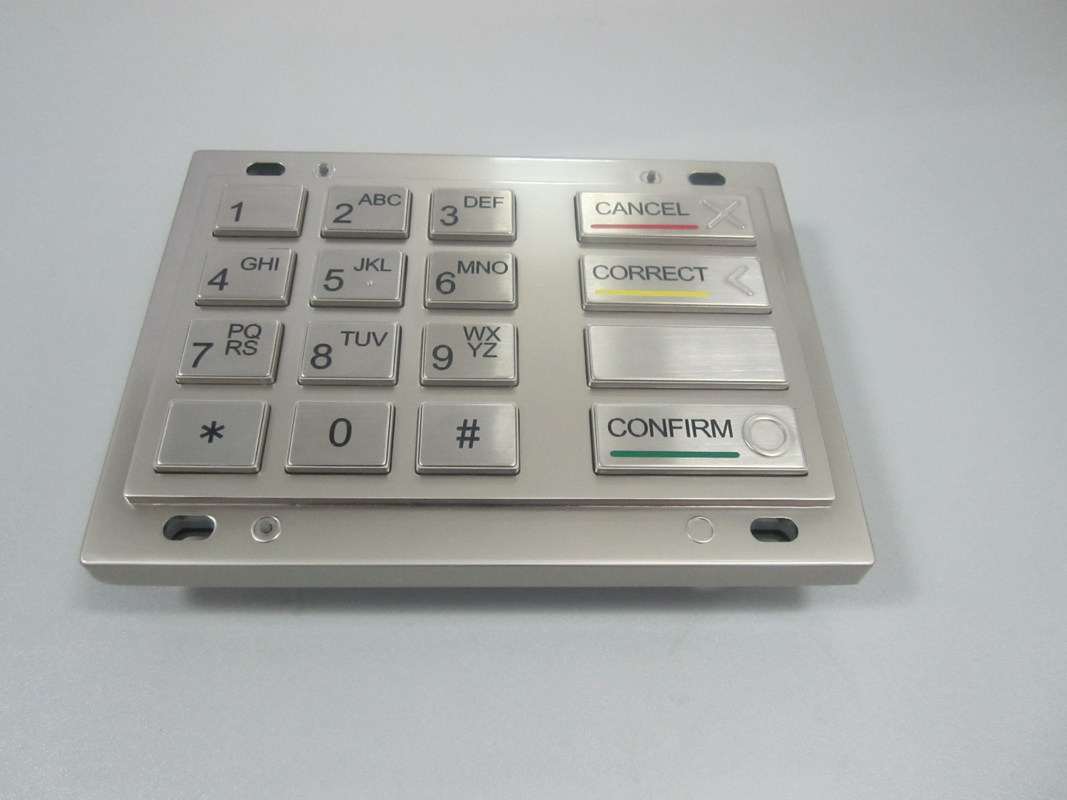

1. Input keypad: 10 numeric keys, 6 function keys.

2. Secure PIN entry and secure mechanism, prevent any combination of the attack, ensure the save of the secure information.

3. Security encryption key management

4. High performance secure management

5. Has strong WOSA driver supported, so it can be applied to different ATMs/ Kiosks.



The KMY EPP is mainly constructing with the components as bellow:

1. 16 pieces of stainless steel keycaps

2. Stainless steel frame

3. Tamper resistant secure box

4. Main board, all electronic components are layout on the board

5. Has strong WOSA driver supported, so it can be applied to different ATMs / Kiosks.



1. Keypad made of high quality stainless steel

2. Customizable layout, dimension and installation design

3. Braille key design for visually handicapped people


Keycap press force

1. All keycaps press should have event,

2. All keycaps press force is the same, the force is 3.6 N.

3. All keycaps press should has a feedback feel.

4. All keycaps presss life time is longer than 2,000,000



1. Keystroke life time > 2,000,000

2. Keystroke force 3.6 N

3. Keystroke travel 0.45mm


Environment Requirements

1. Operating temperature range: 25-65

2. Storage temperature range: 25-65

3. Maximum humidity in operating environment: 80%

4. For security reasons, the secure information will be deleted when the environment temperature is beyond the storage temperature range.



ATM Payment Kiosk Encrypted Pin Pad (KMY3501B-PCI)


KMY (SZ KMY Co., Ltd) is a worldwide leading manufacturer of self-service kiosks, metal keyboards, and E-POS. The company is located in Shenzhen, China, a beautiful seaside city, which is the most developed and high-tech driven area in China, only 45 minutes ride from Shenzhen to Hong Kong and very convenient for international business discussion.

KMY products and solutions are popular both in the domestic and global markets in over 40 countries, mainly in America, Europe, Asia, Africa, and the Middle East and have gained a strong reputation in this industry. KMY is not only a profitable company with robust financial performance and stable cash flow, but is also a company with growing potentials and prospects. Looking forward, KMY defines its strategic goal of "becoming a worldwide leader in the self-service world and achieving leapfrog evolution from excellence to preeminence”. To this end, KMY will adhere to its core value proposition of "Responsibility Makes Perfection" and will spare no effort to improve its competitiveness by implementing the concept of scientific development.

KMY’s Team is our core competence. We know that all the quality products and services come from a conscientious and enthusiastic team. The intellectual staff and over 75% of the engineering technology staff have at least 10 years experience in manufacturing kiosks, developing technology and researching self-service terminals

Our belief is that “Integrity, Teamwork, Innovation and Sustainability” are the factors that will keep KMY growing stably and healthily and provide better services to our customers.


ATM Payment Kiosk Encrypted Pin Pad (KMY3501B-PCI)


Packaging & Shipping

ATM Payment Kiosk Encrypted Pin Pad (KMY3501B-PCI)


Shipping Method:

For samples or small orders, we'd like to recommend to ship by express and we have good cooperation with DHL,UPS,FEDEX and TNT.
For large volume orders, we can also arrange shipping by air or sea.

ATM Payment Kiosk Encrypted Pin Pad (KMY3501B-PCI)


ATM Payment Kiosk Encrypted Pin Pad (KMY3501B-PCI)
