Self-service Information Kiosk Metal Keyboard With Numeric Keypad and Trackball

Self-service Information Kiosk Metal Keyboard With Numeric Keypad and Trackball

metal computer keyboard

metal keyboard with trackball

Place of Origin:

China

Brand Name:

KMY

Certification:

CE,ROHS,FCC

Model Number:

KMY299H

Contact Us

Request A Quote
Product Details
Front Panel Dimension:
478*135mm
Material:
Stainless Steel
Protection Class:
IP65 IK07
Mouse Type:
Trackball
Mounting Method:
Hole Mounting
Interface:
PS/2 Or USB
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
It depends on quantity
Packaging Details
High quality carton with customized foam inside
Delivery Time
Within 3 working days for sample(US layout)
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
3000pcs per month
Product Description

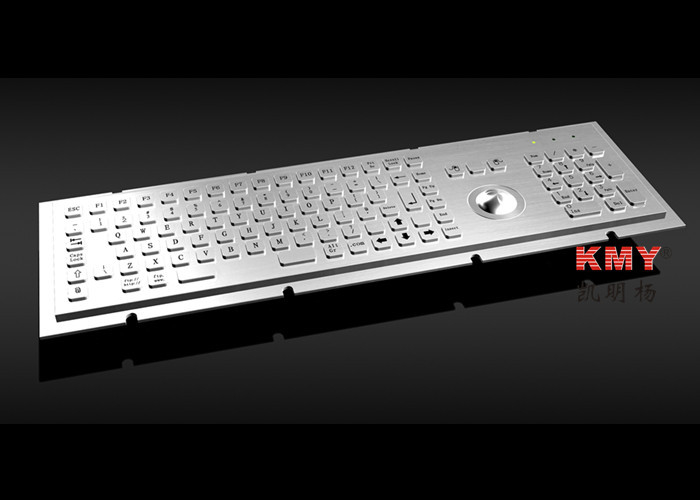

Self-service Information Kiosk Metal Keyboard With Numeric Keypad and Trackball







Faceplate Dimensions(W×H):478×135mm (see drawing as below)







KMY299H is made of high quality 304 stainless steel.Different language layout is available without additional charge.PS2 and USB interface can be optional.It is widely used on the kiosks and industrial equipments which need to be input varied informations.







Features:

Ø  104 keys stainless steel rear-panel mount keyboard with trackball and numeric keypad

Ø  Support OS: Windows 95/98/NT/ME/2000/2003/XP/Vista, Linux and Unix

Ø  Waterproof and dustproof

Ø  Very rugged vandal proof design

Ø  Can be cleaned with soapy water, disinfectant or other cleaning agents

Ø  Carbon-on-Gold key switch technology PCB

Ø  PS/2 or USB interface available

Ø  Customized language layout available

Ø  Mechanical and Optical trackball are both available

Ø  Protuberant rectangular keys, raised Braille keys are available







Material:

Ø  Front Panel: High quality stainless steel

Ø  Keys: High quality stainless steel

Ø  Back panel: Aluminum

Ø  Trackball: High quality stainless steel







Dimensions:

Ø  Front Panel: 478 × 135mm

Ø  Overall: 502 x 159 mm

Ø  Trackball: 38mm diameter







Mechanical Performance:

Ø  Operating Temperature:0°to+45°

Ø  Storage Temperature: -20°to +60°

Ø  Relative humidity: 30%~95%

Ø  Atmospheric pressure: 50 to 110kPa

Ø  Lifespan: >1 million operations per key

Ø  Key trip: 2mm

Ø  Key pressure: 120g

Ø  Weight: 2.6kg







Electrical Performance:

Ø  Voltage: 5.0VDC±5%

Ø  Electric current: 10mA

Ø  EMC Emission: EN55022(B)







Reliability:

Ø  MTBF: >20,000 hours

Ø  MTTR: < 30 minutes

Ø  CE, FCC, RoHS compliant

Ø  Waterproof and dustproof Class: IP65

Ø  Vandal resistant: IK07

Self-service Information Kiosk Metal Keyboard With Numeric Keypad and Trackball 0
