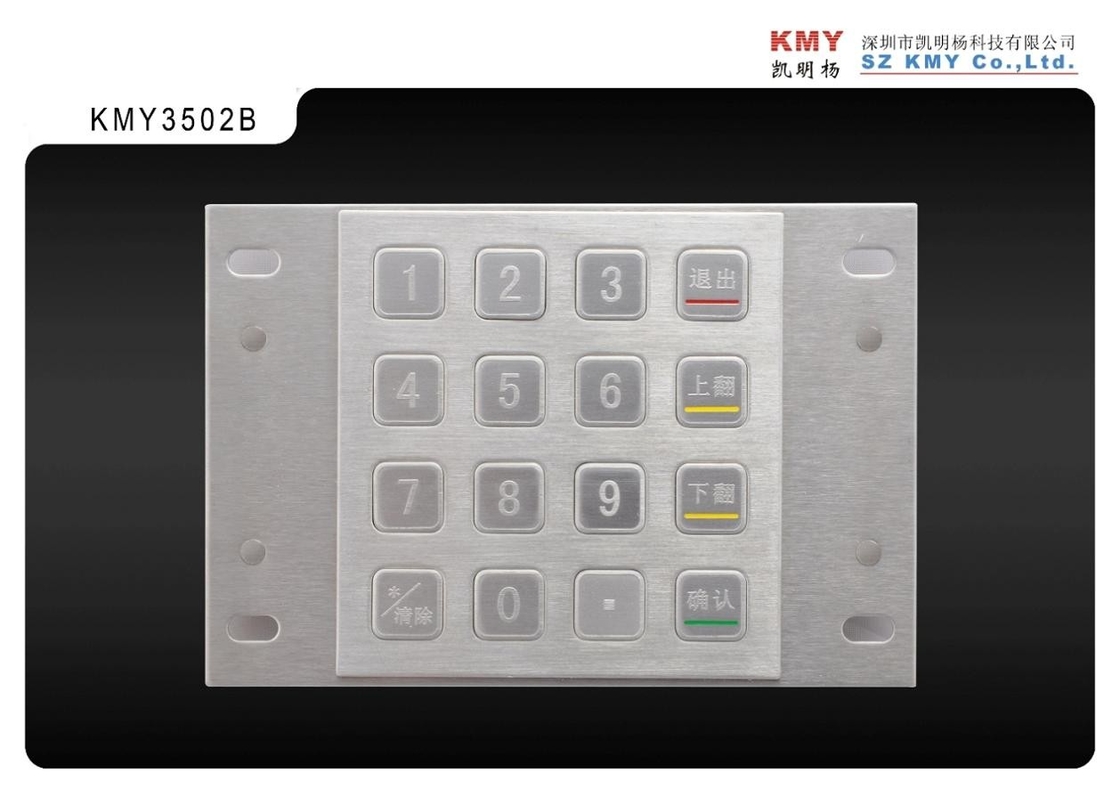

Stainless Steel Kiosk Metal Numeric Keypad 4x4 Membrane Access Control System

Stainless Steel Kiosk Metal Numeric Keypad 4x4 Membrane Access Control System

metal computer keyboard

metal keyboard with trackball

4x4 Membrane Metal Numeric Keypad

Place of Origin:

China

Brand Name:

KMY

Certification:

CE,ROHS,FCC

Model Number:

KMY3502B

Contact Us

Request A Quote
Product Details
Material:
High Quality Stainless Steel
Water Proof:
Support
Alogrithm:
DES/TDES
Key Lifespan:
> 2000000
Interface:
USB Or PS/2
Application:
Payment Kiosk,vending Machine
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
It depends on quantity
Packaging Details
High quality carton with customized foam inside
Delivery Time
Within 3 working days for sample(US layout)
Payment Terms
T/T.west union
Supply Ability
3000pcs per month
Product Description

Stainless Steel Kiosk Metal Numeric Keypad 4x4 Membrane Keypad Access Control System





Faceplate Dimensions(W×H):87.5×91.5mm (see drawing as below)







KMY3502B is a stainless steel keypad with both numeric and function keys .

The layout could be any language and function keys could be customized .

Front mounting installation .





Application



Ø   Check-in Kiosk

Ø   Boarding Kiosk

Ø   Info-Kiosk

Ø   Internet Kiosk

Ø   Medical Kiosk

Ø   Industrial control platform

Ø   Gaming machine

Ø   Access control platform





Physical Features



Ø  Keypad made of high quality stainless steel

Ø  Customizable layout, dimension and installation design

Ø  Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof

Ø  Ports for optional eight external function keys, beeper and guide light

Ø  IP Protection Class IEC/DIN/EN/ 60529:IP65

Ø  IK Protection Class DIN EN 50102:IK07

Ø  GW: 0.5KG





Reliability and Performance Data



Ø  Key lifetime > 2,000,000 cycles per key

Ø  Force on keys: 3~5 N

Ø  Key travel: 0.45mm

Ø  Wide voltage input: 5V DC +/- 20%

Ø  In running state, 5 V +/- 20% is needed; the electrical current is up to 100 mA and the actual power consumption is below 1.5W.

Ø  Running lifetime > 5 years; Battery lifetime > 5 years (without external power supply)





Environment Requirements



Ø  Only the front panels shall be exposed to outdoor climate. The panels are dustproof, waterproof, shake-proof, pickproof, drill-proof and bombproof.

Ø  Operating temperature range: 0℃‑ 45℃

Ø  Storage temperature range: –25℃ - 65℃

Ø  Maximum humidity in operating environment: 80%
