3x4 Keys Stainless Steel Numeric Kiosk Metal Keyboard With USB Interface

3x4 Keys Stainless Steel Numeric Kiosk Metal Keyboard With USB Interface

metal computer keyboard

stainless steel keyboard

3x4 Keys Kiosk Metal Keyboard

Place of Origin:

China

Brand Name:

KMY

Certification:

CE,ROHS,FCC

Model Number:

KMY3502J-1

Contact Us

Request A Quote
Product Details
Mounting Type:
Hole Mounting
Material:
Stainless Steel
Front Panel Dimension:
92 X 76.5 Mm
Protection Level:
IP65
Vandal Resistant:
IK07
Interface:
PS/2 Or USB
Key Press Force:
3 To 5N
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
It depends on quantity
Packaging Details
High quality carton with customized foam inside
Delivery Time
Within 3 working days for sample(US layout)
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
3000pcs per month
Product Description

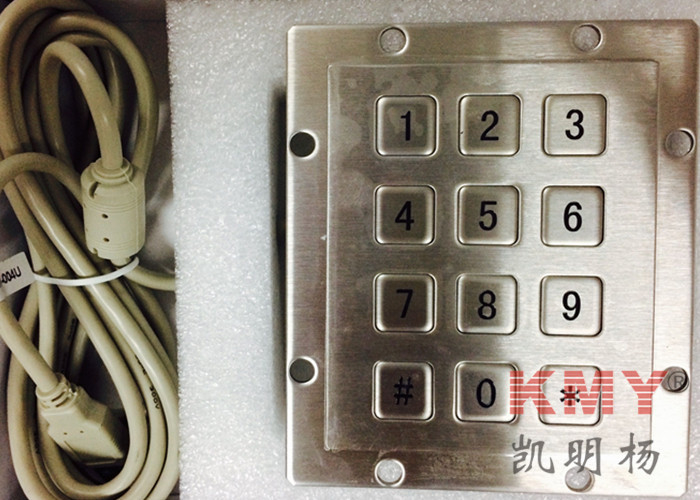

3x4 Keys Stainless Steel Numeric Kiosk Metal Keyboard with USB Interface





Faceplate Dimensions(W×H): 92×76.5mm





KMY3502J-1 is a stainless steel keypad with both numeric and function keys .

The layout could be any language and function keys could be customized .

rear mounting installation .







Application

Ø   Check-in Kiosk

Ø   Boarding Kiosk

Ø   Info-Kiosk

Ø   Internet Kiosk

Ø   Medical Kiosk

Ø   Industrial control platform

Ø   Gaming machine

Ø   Access control platform







Features

Ø  High quality stainless steel keypad with trackball

Ø  Customizable layout, dimension and installation design

Ø  16 keys: 10 numeric keys and 6 function keys

Ø  Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof

Ø  Ports for optional eight external function keys, beeper and guide light

Ø  IP Protection Class IEC/DIN/EN/ 60529:IP65

Ø  IK Protection Class DIN EN 50102:IK07







Reliability and Performance Data

Ø  Key lifetime > 2,000,000 cycles per key

Ø  Force on keys: 2.5~3.5 N

Ø  Key travel: >0.45mm

Ø  Wide voltage input: 5V DC +/- 10%

Ø  Running lifetime > 5 years; Battery lifetime > 5 years (without external power supply)







Environment Requirements

Ø  Only the front panels shall be exposed to outdoor climate. The panels are dustproof, waterproof, shake-proof, pickproof, drill-proof and bombproof.

Ø  Operating temperature range: 0℃‑ 60℃

Ø  Storage temperature range: –25℃ - 80℃

Ø  Relative humidity: 30%~90%

Ø  Atmospheric pressure: 60~106 KPa
