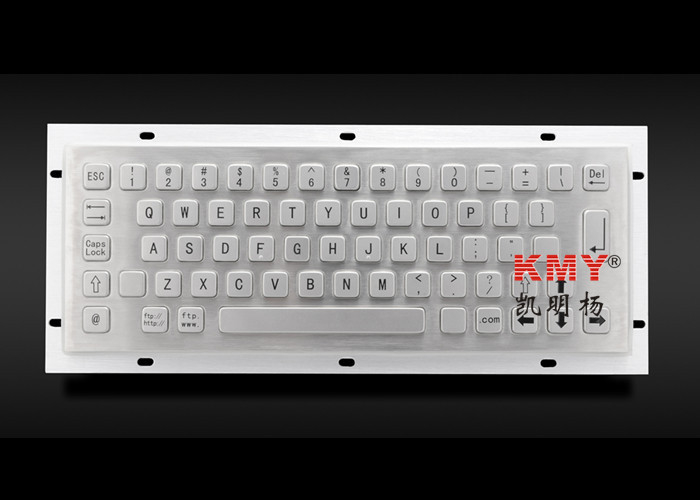

FCC 65 Keys Steel Mechanical Keyboard Hole Mounting Medical Grade Keyboards

FCC 65 Keys Steel Mechanical Keyboard Hole Mounting Medical Grade Keyboards

FCC Steel Mechanical Keyboard

FCC 65 Keys stainless steel keyboard

Hole Mounting Medical Grade Keyboards

Place of Origin:

China

Brand Name:

KMY

Certification:

CE,ROHS,FCC

Model Number:

KMY299C

Contact Us

Request A Quote
Product Details
Material:
Stainless Steel
Water Proof:
Support
Number Of Keys:
65 Keys
Mounting Method:
Hole Mounting
Interface:
PS/2 Or USB
Keyswitch Technology:
Carbon-on-gold Technology Or Gold-on-gold Technology
Operating Temperature:
0℃ To +45℃
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
It depends on quantity
Packaging Details
High quality carton with customized foam inside
Delivery Time
Within 3 working days for sample(US layout)
Payment Terms
T/T.west union
Supply Ability
3000pcs per month
Product Description

Rugged Industrial Vandal Proof Keyboard Waterproof PS2 or USB





KMY299C are is of high quality stainless steel, IP65, IK07, CE, FCC, RoHS certificated,

mainly used on ATM, self-service terminal/kiosk, industrial PCs, etc.



Dimensions:

Ø Front Panel: 300 ×110mm

Ø Overall: 324 ×134mm



Features:

Ø 65 keys stainless steel panel mount keyboard

Ø Support OS: Windows 95/98/NT/ME/2000/2003/XP/Vista, Linux and Unix

Ø Waterproof and dustproof

Ø Very rugged vandal proof design

Ø Can be cleaned with soapy water, disinfectant or other cleaning agents

Ø Carbon-on-Gold key switch technology PCB

Ø PS/2 or USB interface available

Ø Customized language layout available



Material:

Ø Front Panel: high quality stainless steel

Ø Keys: high quality stainless steel

Ø Back panel: Aluminum





Mechanical Performance:

Ø Operating Temperature:-10°to+50°

Ø Storage Temperature: -30°to +80°

Ø Relative humidity: 30%~95%

Ø Atmospheric pressure: 50 to 110kPa

Ø Lifespan: >1 million operations per key

Ø Key trip: 2mm

Ø Key pressure: 120g

Ø Weight: 1.6kg





Electrical Performance:

Ø Voltage: 5.0VDC±5%

Ø Electric current: 10mA

Ø EMC Emission: EN55022(B)



Reliability:

Ø MTBF: >20,000 hours

Ø MTTR: < 30 minutes

Ø CE, FCC, RoHS compliant

Ø Waterproof and dustproof Class: IP65

Ø Vandal resistant: IK07
