Place of Origin:
China
Brand Name:
KMY
Certification:
CE,ROHS,FCC
Model Number:
KMY299I-4
Contact Us

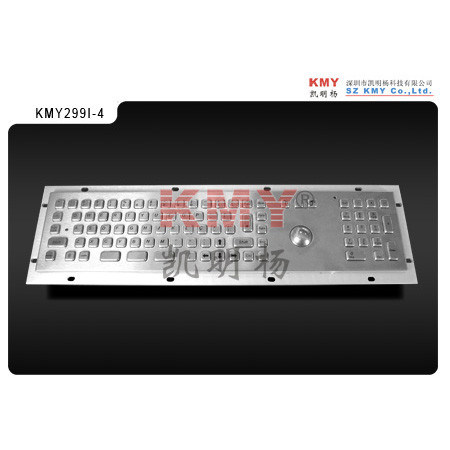

Industrial Waterproof IP65 Kiosk Metal Keyboard with Trackball , Customized For Self-service Kiosks
Faceplate Dimensions(W×H): 370×87mm (see drawing as below)
KMY299I-4 is made of high quality 304 stainless steel.Different language layout is available without additional charge.PS2 and USB interface can be optional.It is widely used on the kiosks and industrial equipments which need to be input varied informations.
FCC Waterproof Metal USB Kiosk Keyboard Customized for Industrial
Features:
Ø 88 keys stainless steel panel mount keyboard
Ø Support OS: Windows 95/98/NT/ME/2000/2003/XP/Vista, Linux and Unix
Ø Waterproof and dustproof
Ø Very rugged vandal proof design
Ø Can be cleaned with soapy water, disinfectant or other cleaning agents
Ø Carbon-on-Gold key switch technology PCB
Ø PS/2 or USB interface available
Ø Customized language layout available
Ø Optical trackball solution
Material:
Ø Front Panel: high quality stainless steel
Ø Keys: high quality stainless steel
Ø Trackball: high quality stainless steel
Ø Back panel: Aluminum
Dimensions:
Ø Front Panel: 370 ×87mm
Ø Overall: 394 ×111mm
Ø Trackball diameter: 25mm
Mechanical Performance:
Ø Operating Temperature:-10°to+50°
Ø Storage Temperature: -30°to +80°
Ø Relative humidity: 30%～95%
Ø Atmospheric pressure: 50 to 110kPa
Ø Lifespan: >1 million operations per key
Ø Key trip: 2mm
Ø Key pressure: 120g
Ø Weight: 2.0kg
Electrical Performance:
Ø Voltage: 5.0VDC±5%
Ø Electric current: 10mA
Ø EMC Emission: EN55022(B)
Ø Trackball resolution: >800 DPI
Reliability:
Ø MTBF: >20,000 hours
Ø MTTR: < 30 minutes
Ø CE, FCC, RoHS compliant
Ø Waterproof and dustproof Class: IP65
Ø Vandal resistant: IK07
