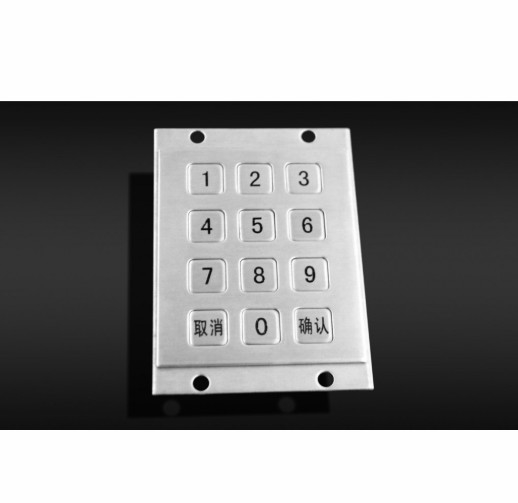

Vandal Resistance IP65 Metallic 3x4 Layout Kiosk Function Keypad

Vandal Resistance IP65 Metallic 3x4 Layout Kiosk Function Keypad

Layout Kiosk Function Keypad

IP65 Metallic Kiosk Function Keypad

IP65 3x4 Function Keypad

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Place Of Origin:
Guangdong China
1 Year
76.5 X 92mm
Banking Equipment, Banking Equipment, ATM
Keystroke Life Time:
> 2,000,000
Payment & Shipping Terms
Minimum Order Quantity
$40.00 - $146.00 / Unit
Packaging Details
Delivery Time
Payment Terms
Supply Ability
5000pcs per month
Product Description

Product Description

Metal keypad for access control system
High-quality, Antivandal proof,Waterproof,Dustproof

Model No.: KMY3502J-1


Faceplate Dimensions:76.5 x 92mm


Interface: PS/2 or USB


  • Keypad made of high quality stainless steel
  • Customizable layout, dimension and installation design
  • 12 keys: 10 numeric keys and 2 function keys
  • Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof
  • Ports for optional eight external function keys, beeper and guide light
  • IP Protection Class IEC/DIN/EN/ 60529:IP65
  • IK Protection Class DIN EN 50102:IK07

Main Application:

Kiosk, Info Terminal, Vending machine, Access control, Industrial control, Gaming machine.

Reliability and Performance Data

  • Key lifetime > 2,000,000 cycles per key
  • Force on keys: 2.5~3.5 N
  • Key travel: >0.45mm
  • Wide voltage input: 5V DC +/- 10%
  • Running lifetime > 5 years; Battery lifetime > 5 years (without external power supply)

Environment Requirements

  • Only the front panels shall be exposed to outdoor climate. The panels are dustproof, waterproof, shake-proof, pickproof, drill-proof and bombproof.
  • Operating temperature range: 0°C- 60°C
  • Storage temperature range: –25°C - 80°C
  • Relative humidity: 30%~90%
  • Atmospheric pressure: 60~106 KPa


  • CE, RoHS, FCC
