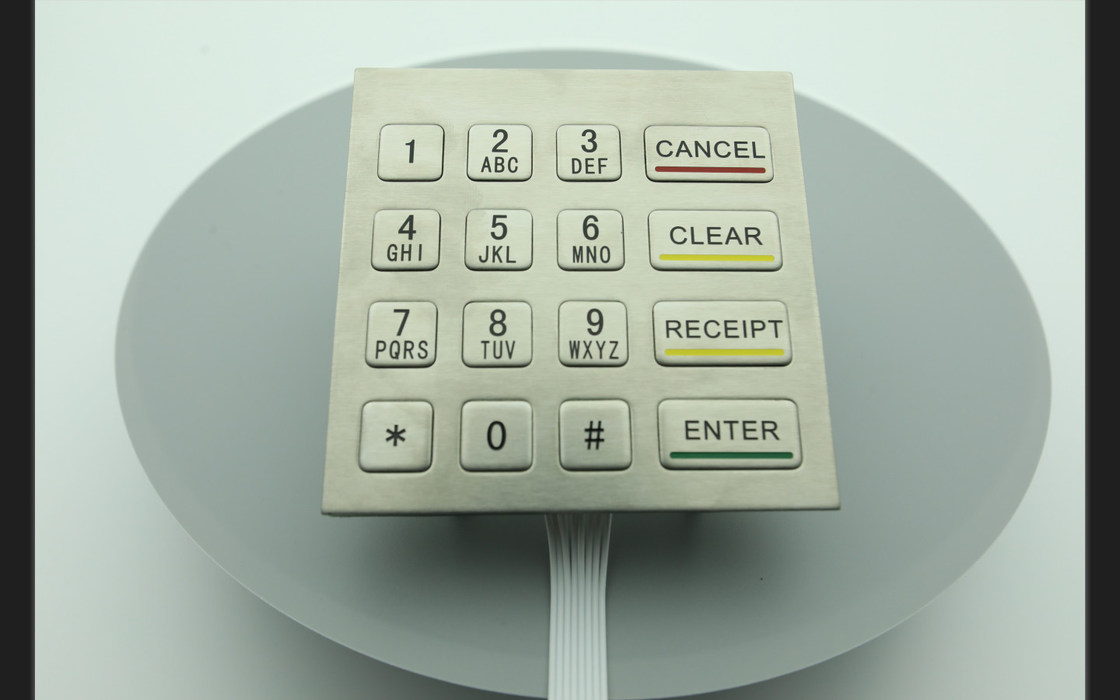

Vandalproof Metal Numeric Keypad 4x4 Access Control Matrix Vending Kiosk

Vandalproof Metal Numeric Keypad 4x4 Access Control Matrix Vending Kiosk

PS2 Interface Metal Numeric Keypad

RoHS Metal Numeric Keypad

Matrix Vending Kiosk Metal Numeric Keypad

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Place Of Origin:
Guangdong China
1 Year
100x100 Mm
Banking Equipment, Banking Equipment, ATM
Keystroke Life Time:
> 2,000,000
Payment & Shipping Terms
Minimum Order Quantity
$40.00 - $146.00 / Unit
Packaging Details
Delivery Time
Payment Terms
Supply Ability
5000pcs per month
Product Description

Function Description


Faceplate Dimensions(W×H) 100×100mm

Physical Features:

  1. Keypad made of high quality stainless steel
  2. Customizable layout, dimension and installation design
  3. Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof
  4. Braille key design for visually handicapped people
  5. Ports for optional eight external function keys, beeper and guide light
  6. IP Protection Class IEC/DIN/EN/ 60529:IP65
  7. IK Protection Class DIN EN 50102:IK07
  8. USB and PS/2 interface optional
  9. GW:0.55KG

Reliability and Performance Data

  1. Key lifetime > 2,000,000 cycles per key
  2. Force on keys: 3~5 N
  3. Key travel: 0.45mm
  4. Wide voltage input: 5V DC +/- 20%
  5. In running state, 5 V +/- 20% is needed; the electrical current is up to 100 mA and the actual power consumption is below 1.5W.
  6. Running lifetime > 5 years; Battery lifetime > 5 years (without external power supply)

Environment Requirements

  1. Only the front panels shall be exposed to outdoor climate. The panels are dustproof, waterproof, shake-proof, pickproof, drill-proof and bombproof.
  2. Operating temperature range: –25°C-45°C
  3. Storage temperature range: –25°C-65°C
  4. Maximum humidity in operating environment: 80%


  • CE, RoHS, FCC


Vandal proof waterproof 4*4 access control metal keypad matrix vending kiosk numeric keypad with 16 keys


Vandal proof waterproof 4*4 access control metal keypad matrix vending kiosk numeric keypad with 16 keys
