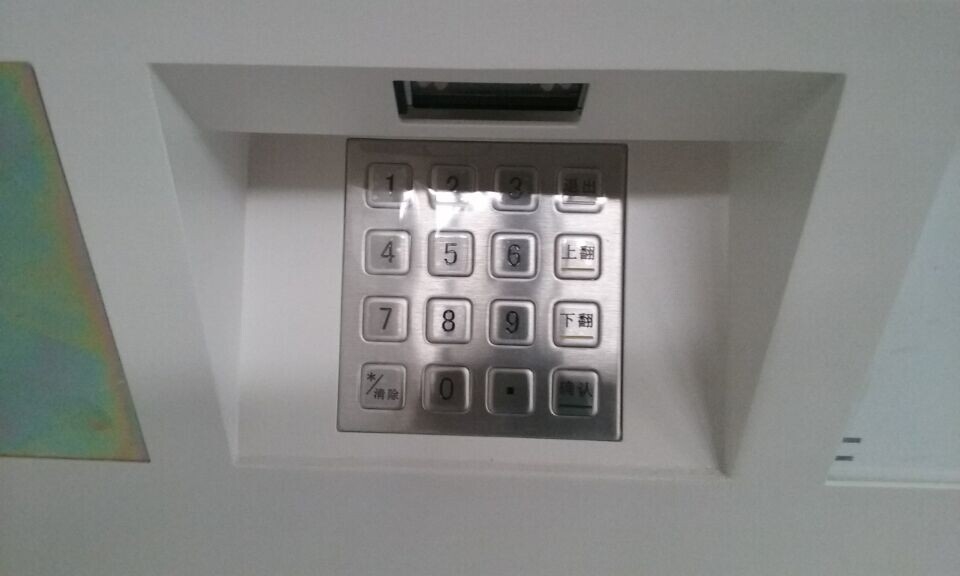

Waterproof IP65 Metal Numeric Keypad Non Encrypted 16 Keys ATM Pin Keypad

Waterproof IP65 Metal Numeric Keypad Non Encrypted 16 Keys ATM Pin Keypad

Waterproof IP65 Metal Numeric Keypad

16 keys ATM Pin Keypad

IP65 ATM Pin Keypad

Place of Origin:


Brand Name:



ISO, Ce, FCC, RoHS, IP65, Ik07

Model Number:


Contact Us

Request A Quote
Product Details
Place Of Origin:
Guangdong China
1 Year
87.5 X 91.5 Mm
Banking Equipment, Banking Equipment, ATM
Keystroke Life Time:
> 2,000,000
Payment & Shipping Terms
Minimum Order Quantity
$40.00 - $146.00 / Unit
Packaging Details
Delivery Time
Payment Terms
Supply Ability
5000pcs per month
Product Description

ATM Waterproof IP65 Non Encrypted Numeric Davo Metal Keypad

Product Description

Faceplate dimensions: 87.5 x 91.5 mm
Overall: 140 × 95 mm

Interface: PS/2 or USB


  1. Keypad made of high quality stainless steel
  2. Customizable layout, dimension and installation design
  3. 16 keys: 10 numeric keys and 6 function keys
  4. Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof
  5. Ports for optional eight external function keys, beeper and guide light
  6. IP Protection Class IEC/DIN/EN/ 60529:IP65
  7. IK Protection Class DIN EN 50102:IK07

Main Application:

Kiosk, Info Terminal, Vending machine, Access control, Industrial control, Gaming machine.

Reliability and Performance Data:

  1. Key lifetime > 3,000,000 cycles per key
  2. Force on keys: 2.5~3.5 N
  3. Key travel: >0.45mm
  4. Wide voltage input: 5V DC +/- 10%
  5. Running lifetime > 5 years; Battery lifetime > 5 years (without external power supply)

Environment Requirements:

  1. Only the front panels shall be exposed to outdoor climate. The panels are dustproof, waterproof, shake-proof, pickproof, drill-proof and bombproof.
  2. Operating temperature range: 0ºC 60ºC
  3. Storage temperature range: -25ºC - 80ºC
  4. Relative humidity: 30%~90%
  5. Atmospheric pressure: 60~106 KPa


  1. CE, RoHS, FCC
  2. Waterproof IP65, vandalproof IK07


Company Introduction


KMY (SZ KMY Co., Ltd) is a worldwide leading manufacturer of self-service kiosks, metal keyboards, and E-POS. The company is located in Shenzhen, China, a beautiful seaside city, which is the most developed and high-tech driven area in China, only 45 minutes ride from Shenzhen to Hong Kong and very convenient for international business discussion.

KMY products and solutions are popular both in the domestic and global markets in over 40 countries, mainly in America, Europe, Asia, Africa, and the Middle East and have gained a strong reputation in this industry. KMY is not only a profitable company with robust financial performance and stable cash flow, but is also a company with growing potentials and prospects. Looking forward, KMY defines its strategic goal of "becoming a worldwide leader in the self-service world and achieving leapfrog evolution from excellence to preeminence”. To this end, KMY will adhere to its core value proposition of "Responsibility Makes Perfection" and will spare no effort to improve its competitiveness by implementing the concept of scientific development.

KMY’s Team is our core competence. We know that all the quality products and services come from a conscientious and enthusiastic team. The intellectual staff and over 75% of the engineering technology staff have at least 10 years experience in manufacturing kiosks, developing technology and researching self-service terminals

Our belief is that “Integrity, Teamwork, Innovation and Sustainability” are the factors that will keep KMY growing stably and healthily and provide better services to our customers.




1, Do you have perfect solution for different layout ?

Yes ,we already have more than 50 language layouts design such as English,Arabic ,Korean ,Spainish and we could do for free .

2, what is your warrantly terms ?

one year warrantly ,if any problems ,we will provide remote training to help customer fix or replace with brand new keyboard and burden the freight cost .

3, what is your advantage on metal keyboard with trackball or touchpad ?

First ,our price is very competitve but to be honest we are not the lowest in market because we use better material and electronic components in our motherboard ,cable and panel .so one of our advantage is our quality.

second ,we always quick react on customers' requirement and provide professional consult and service .

our aftersales service is the best ,we have local agency in many countries too.
