Self Service Kiosk 65 Keys Panel Mounting Industrial IP65 Stainless Steel Metal Keyboard With Trackball

Self Service Kiosk 65 Keys Panel Mounting Industrial IP65 Stainless Steel Metal Keyboard With Trackball

Stainless Steel Keyboard 1.6N

Unix Stainless Steel Keyboard

Industrial Keyboard With Trackball 10mA

Place of Origin:

China

Brand Name:

KMY

Certification:

CE,ROHS,FCC

Model Number:

KMY299B-2

Contact Us

Request A Quote
Product Details
Material:
304 Stainless Steel
Front Panel Size:
431*126mm
Protection Level:
IP65, IK07
Application:
Self-service Kiosk, Industrial Equipment
Connection Port:
USB Or PS/2
Trackball Diameter:
38mm
Installation:
Panel Mounting
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
It depends on quantity
Packaging Details
High quality carton with customized foam inside
Delivery Time
Within 3 working days for sample(US layout)
Payment Terms
T/T.west union
Supply Ability
3000pcs per month
Product Description

Self Service Kiosk 65 Keys Panel Mounting Industrial IP65 Stainless Steel Metal Keyboard With Trackball



Model Number: KMY299B-2

Faceplate Dimensions(W×H):431×126mm

KMY299B-2 is made of high quality 304 stainless steel.Different language layout is available without additional charge.PS2 and USB interface can be optional.It is widely used on self-service kiosks and industrial equipment which need to be input information.



Metal Keyboards With Trackball Features:

Ø  65 keys stainless steel panel mounting keyboard with trackball

Ø  Support OS: Windows 95/98/NT/ME/2000/2003/XP/Vista, Linux and Unix

Ø  Customized layout available

Ø  Lettering by etching and inking, or laser technology

Ø  Carbon-on-Gold key switch technology (silicon gel)

Ø  Mechanical/ Optical trackball optional

Ø  Waterproof and dustproof



Metal Keyboards With Trackball Material:

Ø  Front Panel: High quality 304# stainless steel

Ø  Keys: High quality 304# stainless steel

Ø  Trackball: High quality 304# stainless steel

Ø  Back panel: Aluminum alloy



Electrical Data
Electric Current 10 mA
EMC Emission EN55022
ESD Standard Air Discharge 8KV; Contact Discharge 6KV
Input Voltage 5.0VDC±5%





Metal Keyboards With Trackball Reliability:

Ø  MTBF: >20,000 hours

Ø  MTTR: < 30 minutes

Ø  CE, FCC, RoHS, ESD compliant

Ø  Waterproof and Dustproof class: IP65 (front panel)

Ø  Vandal resistant class: IK07



Mechanical Data
Key Trip 1.5 mm
Key Pressure 0.8~1.6 N
Lifespan >2 million operations per key
Gross Weight 2.0 KGS



Environmental Adaptability:

Ø Operating Temperature: 0°~+60°

Ø Storage Temperature: -25°~+80°

Ø Relative humidity: 30%~90%

Ø Atmospheric pressure: 60~106 KPa

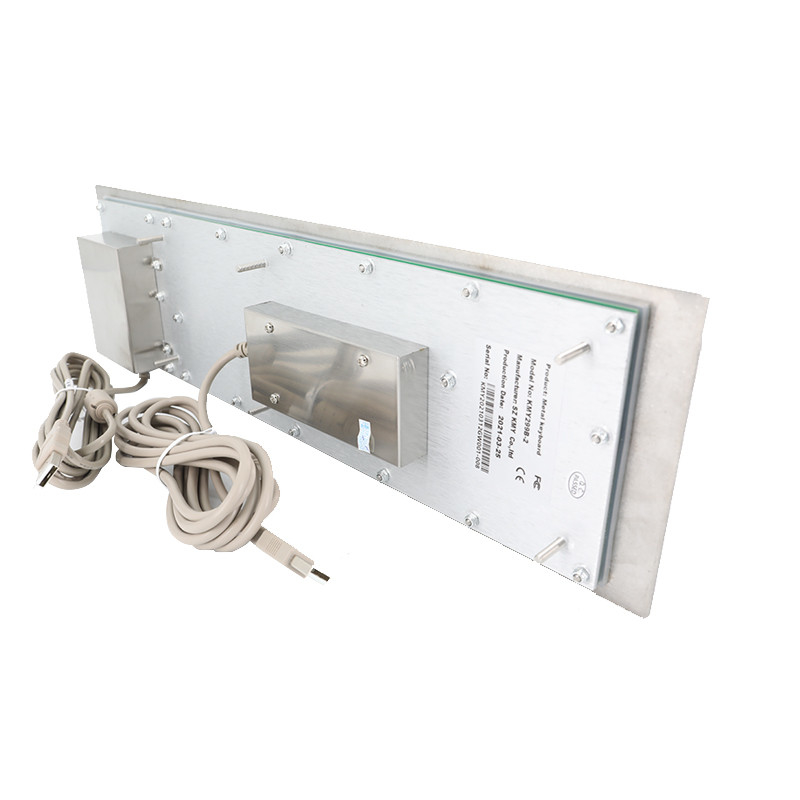

Self Service Kiosk 65 Keys Panel Mounting Industrial IP65 Stainless Steel Metal Keyboard With Trackball 0

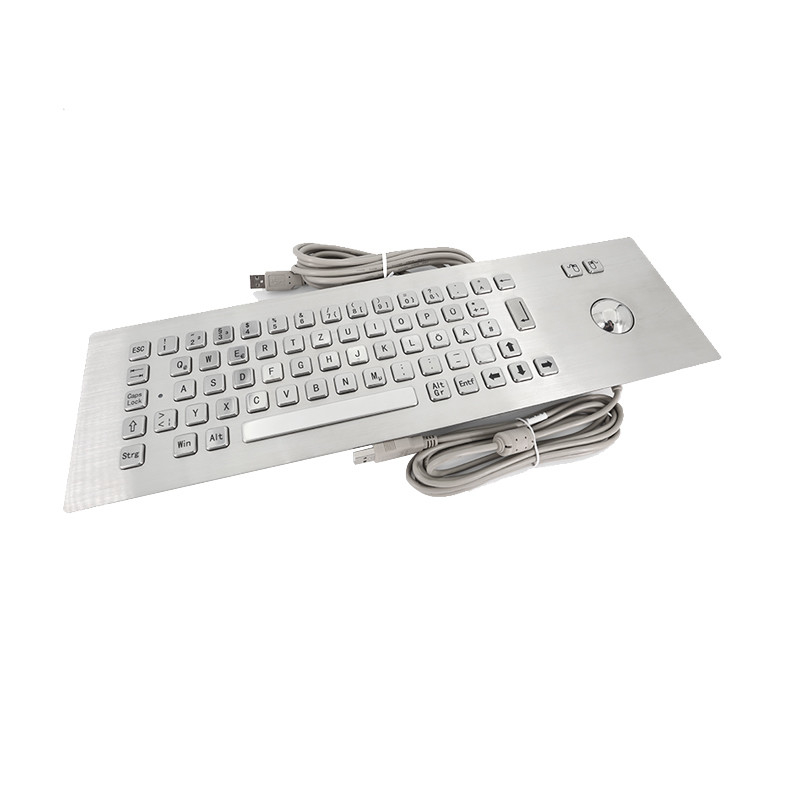

Self Service Kiosk 65 Keys Panel Mounting Industrial IP65 Stainless Steel Metal Keyboard With Trackball 1

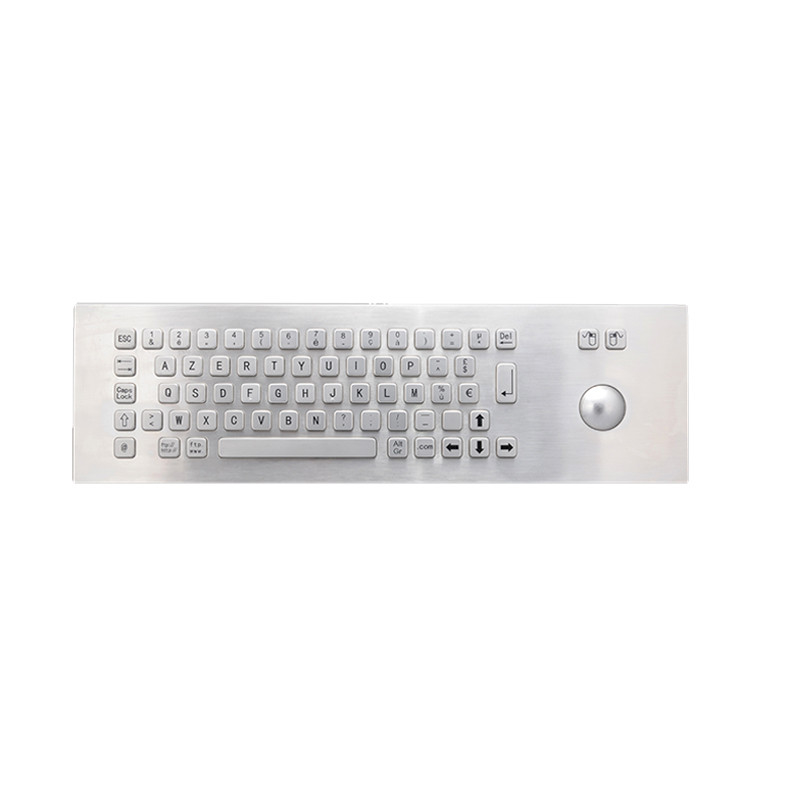

Self Service Kiosk 65 Keys Panel Mounting Industrial IP65 Stainless Steel Metal Keyboard With Trackball 2

FAQ

1. Q: How to ensure the quality of the products?
A: Every piece of our products will be under strict and repeat tests before delivery.

2. Q: How is the shipping?
A: Generally speaking, your order will be delivered within 3-5 working days after the details are confirmed.

3. Q: How will you deliver the products?
A: We can deliver by express, by sea, by air or at you request.
