USB RS232 ATM Machine Encrypted Metal Pin Pad 16 Key Keypad

USB RS232 ATM Machine Encrypted Metal Pin Pad 16 Key Keypad

RS232 Metal Pin Pad

RS232 Encrypted Pin Pad

RS232 16 Key Keypad

Place of Origin:

China

Brand Name:

KMY

Certification:

CE, FCC, ROHS

Model Number:

KMY3501B-PCI

Contact Us

Request A Quote
Product Details
Certification:
PCI 4.X
Cable:
USB RS232
Layout:
Customized
Warranty:
1 Year
Size:
87.5 X 91.5 Mm
Application:
ATM Machine, Banking Equipment
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
carton
Delivery Time
5-15days
Payment Terms
T/T
Supply Ability
5000pcs per month
Product Description

USB RS232 ATM Machine Encrypted Metal Pin Pad 16 Key Keypad



ATM Machine PCI 4.0 Certified DES 3DES Encrypted Metal Pin Pad 16 Keys Keypad

Application of ATM Pin Pad

Encrypting PIN Pad applied widely in ATM, VTM and all kinds of Self-service Terminal & Kiosks etc.

Product Description

Approvals

1. PCI 4.0 ATM key pad

2. Pass the certification of China Central Bank card testing center

3. CE, RoHS, FCC

Dimension and Weight

1. Front Panel Dimension: 87.5mm×91.5mm (Please see the Drawing A below)

2. Weight 1.1kg



Main function

1. Input keypad: 10 numeric keys, 6 function keys.

2. Secure PIN entry and secure mechanism, prevent any combination of the attack, ensure the save of the secure information.

3. Security encryption key management

4. High performance secure management

5. Has strong WOSA driver supported, so it can be applied to different ATMs/ Kiosks.



Structure

The KMY EPP is mainly constructing with the components as bellow:

1. 16 pieces of stainless steel keycaps

2. Stainless steel frame

3. Tamper resistant secure box

4. Main board, all electronic components are layout on the board

5. Has strong WOSA driver supported, so it can be applied to different ATMs / Kiosks.



Appearance

1. Keypad made of high quality stainless steel

2. Customizable layout, dimension and installation design

3. Braille key design for visually handicapped people



Keycap press force

1. All keycaps press should have event,

2. All keycaps press force is the same, the force is 3.6 N.

3. All keycaps press should has a feedback feel.

4. All keycaps presss life time is longer than 2,000,000



Mechanical Data
Keystroke travel  0.45 mm
Keystroke force 3.6 N
Keystroke life time >2 million operations per key



Environment Requirements

1. Operating temperature range: 25-65

2. Storage temperature range: 25-65

3. Maximum humidity in operating environment: 80%

4. For security reasons, the secure information will be deleted when the environment temperature is beyond the storage temperature range.

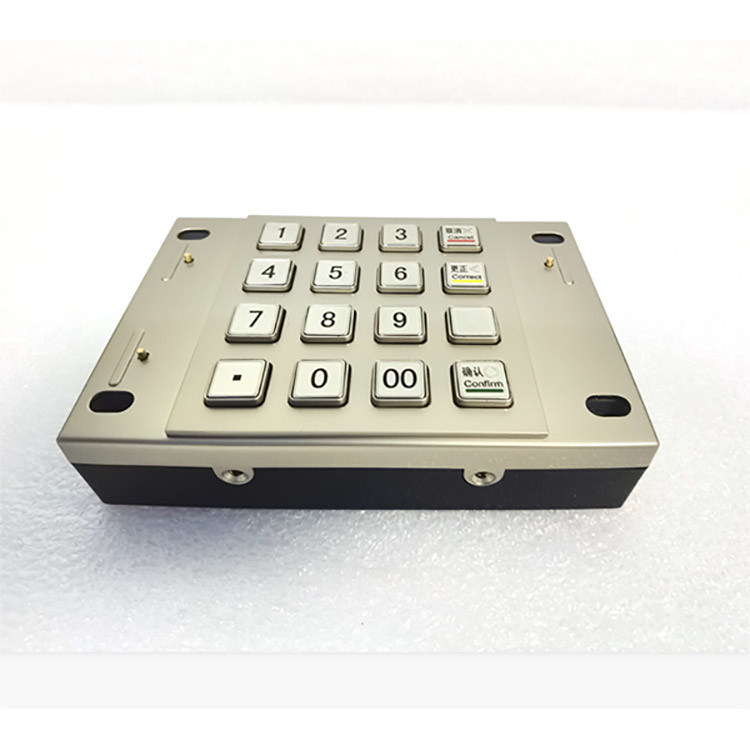

USB RS232 ATM Machine Encrypted Metal Pin Pad 16 Key Keypad 0



USB RS232 ATM Machine Encrypted Metal Pin Pad 16 Key Keypad 1



Certification

ATM Payment Kiosk Encrypted Pin Pad (KMY3501B-PCI)





FAQ



1. Q: How to ensure the quality of the products?

A: Every piece of our products will be under strict and repeat tests before delivery.



2. Q: How is the shipping?

A: Generally speaking, your sample order will be delivered within 3-5 working days after the details are confirmed.



3. Q: How will you deliver the products?

A: We can deliver by express, by sea, by air or at you request.
