Desk Top IP65 Industrial Keyboard With Trackball Stainless Steel

Desk Top IP65 Industrial Keyboard With Trackball Stainless Steel

IP65 Industrial Keyboard With Trackball

SS304 Desktop Keyboard

IP65 Desk Top Keyboard

Place of Origin:

China

Brand Name:

KMY

Certification:

CE,ROHS,FCC

Model Number:

KMY299B-DESK

Contact Us

Request A Quote
Product Details
Keyboard Material:
304 Stainless Steel
Keyboard Dimension:
460*187*53mm
Protection Level:
IP65, IK07
Installation Type:
Desk Top
Interface:
USB Or PS/2
Trackball Diameter:
38mm
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
It depends on quantity
Packaging Details
High quality carton with customized foam inside
Delivery Time
Within 3 working days for sample(US layout)
Payment Terms
T/T.west union
Supply Ability
3000pcs per month
Product Description

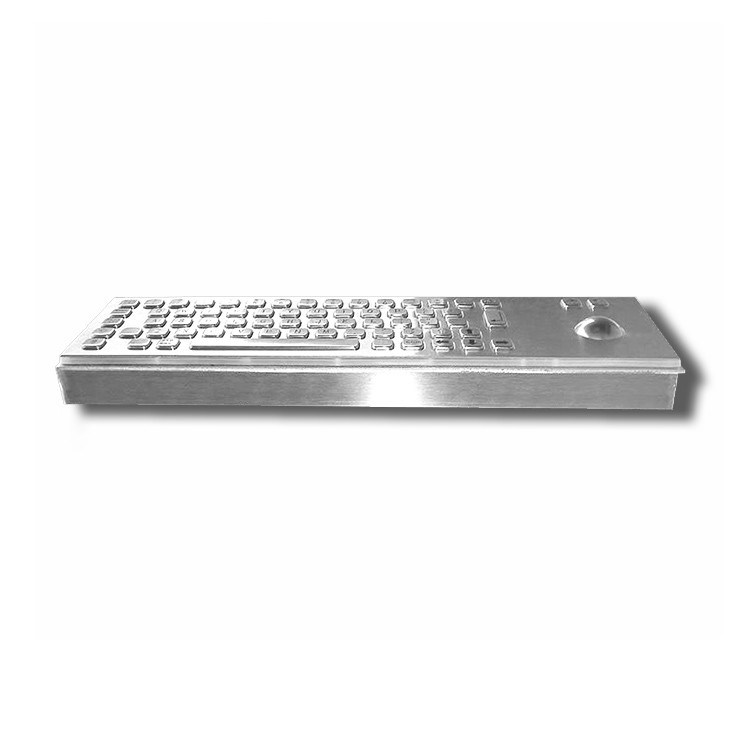

Desk Top IP65 Industrial Keyboard With Trackball Stainless Steel



DeskTop IP65 Waterproof Stainless Steel Industrial Metal Keyboard With Trackball



Model Number: KMY299B-DESK



Dimensions(LxW×H):460*187*53mm



KMY299B-DESK is desktop metal keyboard which is made of high quality 304 stainless steel.Different language layout can be customised to meet different requirements on keyboard application. It is widely used on the self-service kiosks, medical devices and industrial equipments which need to be input information.



Desktop Metal Keyboard With Trackball Features:

Ø  65 keys stainless steel rear mounting keyboard with trackball

Ø  Mechanical/ Optical trackball optional

Ø  Waterproof and dustproof

Ø  Very rugged vandal proof design

Ø  Can be cleaned with soapy water, disinfectant or other cleaning agents



Electrical Data
Electric Current 10 mA
EMC Emission EN55022
ESD Standard Air Discharge 8KV; Contact Discharge 6KV
Input Voltage 5.0VDC±5%



Desktop Metal Keyboard With Trackball Reliability:

Ø MTBF: >20,000 hours

Ø MTTR: < 30 minutes

Ø CE, FCC, RoHS, ESD compliant

Ø Waterproof and Dustproof class: IP65 (front panel)

Ø Vandal resistant class: IK07



Environmental Adaptability:

Ø Operating Temperature: 0°~+60°

Ø Storage Temperature: -25°~+80°

Ø Relative humidity: 30%~90%

Ø Atmospheric pressure: 60~106 KPa



Mechanical Data
Key Trip 1.5 mm
Key Pressure 0.8~1.6 N
Lifespan >2 million operations per key
Gross Weight 2.5~4.0 KGS



Desk Top IP65 Industrial Keyboard With Trackball Stainless Steel 0

Desk Top IP65 Industrial Keyboard With Trackball Stainless Steel 1







FAQ



Q: How to ensure the quality of the products?

A: Every piece of our products will be under strict and repeat tests before delivery.And representative inspector will be welcomed.



Q: How is the shipping?

A: Generally speaking, your order will be delivered within 3-5 working days after the details are confirmed.



Q: How will you deliver the products?

A: We can deliver by express, by sea, by air or at you request.
