16 Keys Stainless Steel Vending Machine Keypad Waterproof Ip65

16 Keys Stainless Steel Vending Machine Keypad Waterproof Ip65

Stainless Steel Vending Machine Keypad

16 keys Stainless Steel Keypad

Ip65 Vending Machine Keypad

Place of Origin:

China

Brand Name:

KMY

Certification:

CE,ROHS,FCC

Model Number:

KMY3502A

Contact Us

Request A Quote
Product Details
Application:
Vending Machine
Size:
100x100 Mm
Material:
304 Stainless Steel
Protection Level:
IP65, IK07
Interface:
USB, PS/2
Warranty:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
40USD~80USD
Packaging Details
High quality carton with customized foam inside
Delivery Time
Within 3 working days for sample(US layout)
Payment Terms
T/T.west union
Supply Ability
3000pcs per month
Product Description

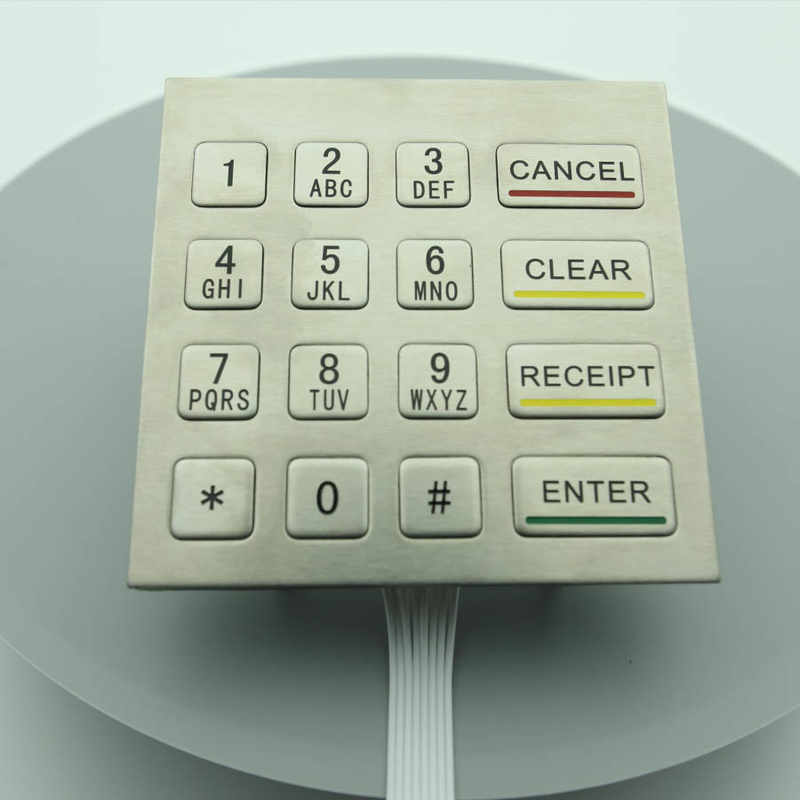

16 Keys Stainless Steel Vending Machine Keypad Waterproof Ip65



Dustproof Waterproof IP65 Stainless Steel 16 Keys Keypad 100x100mm Vending Machine Metal Numeric Keypad



Faceplate Dimensions(W×H):100×100mm



Product Introduction

  1. KMY3502A is a stainless steel keypad with both numeric and function keys .

  2. The layout could be any language and function keys could be customized .

  3. Front mounting installation .

Application

Ø   Check-in Kiosk

Ø   Boarding Kiosk

Ø   Info-Kiosk

Ø   Internet Kiosk

Ø   Medical Kiosk

Ø   Industrial control platform

Ø   Gaming machine

Ø   Access control platform



Physical Features

Ø  Keypad made of high quality stainless steel

Ø  Customizable layout, dimension and installation design

Ø  Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof

Ø  Ports for optional eight external function keys, beeper and guide light

Ø  IP Protection Class IEC/DIN/EN/ 60529:IP65

Ø  IK Protection Class DIN EN 50102:IK07

Ø  GW: 0.5KG



Environment Requirements

Ø  Only the front panels shall be exposed to outdoor climate. The panels are dustproof, waterproof, shake-proof, pickproof, drill-proof and bombproof.

Ø  Operating temperature range: 0℃‑ 45℃

Ø  Storage temperature range: –25℃ - 65℃

Ø  Maximum humidity in operating environment: 80%



Mechanical Performance

Running lifetime

> 5 years

Keys

Stainless steel material

Key lifetime

> 2,000,000 cycles per key

Force on keys

3~5N

Key Travel

0.45mm

Wide voltage input

5V DC +/- 20%



16 Keys Stainless Steel Vending Machine Keypad Waterproof Ip65 0
