Place of Origin:
China
Brand Name:
KMY
Certification:
CE, FCC, ROHS
Model Number:
KMY3501A
Contact Us

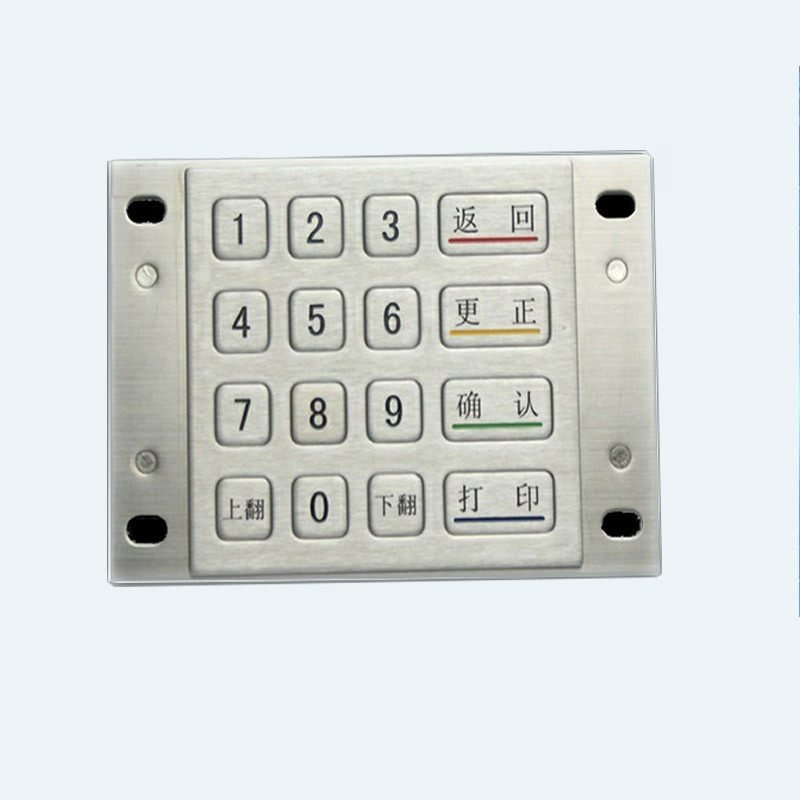

Payment Kiosk IP65 Waterproof Encrypted Keypad Stainless Steel
IP65 Waterproof Encrypted EPP Pin Pad with 16 Keys Payment Kiosk Metal PIN Pad
Model No.: KMY3501A
Faceplate dimensions: 100 x 91.5 mm
Interface: RS232 or USB
Supported Algorithms
Ø DES user data ECB/CBC encryption/decryption
Ø 3DES user data ECB/CBC encryption/decryption
Ø DES MAC calculation
Ø 3DES MAC calculation
Ø DES PIN encryption
Ø 3DESPIN encryption
Structure
The KMY EPP is mainly constructing with the components as bellow:
1. 16 pieces of stainless steel keycaps
2. Stainless steel frame
3. Tamper resistant secure box
4. Main board, all electronic components are layout on the board
5. It can be applied to different ATMs / Kiosks.
Appearance
1. Keypad made of high quality stainless steel
2. Customizable layout, dimension and installation design
3. Braille key design for visually handicapped people
Mechanical Performance | |
Panel Features | Imported stamping stainless steel material, oil-free, does not absorb sweat |
Keys | Stainless steel material |
Key lifespan | >3 Million times long life use |
Key Pressure | 2~3N strong bearing |
Key Travel | 0.45mm |
Key Fonts | etched and durable ink, solid |
Activation Dynamics | 50g |
Protection Capacity | Sensitive data securely be kept over 5 years when power-off |
Electrical Performance | |
Interfaces Type | RS232 port, baud rate: 9600, no odd-even; standard USB2.0 port |
Power Supply | DC5V+10% |
Power consumption | <0.5W (dynamic), <0.2W(static) |
Reliability | MTBF: >30,000H; MTTR: <30 min |
