Place of Origin:
China
Brand Name:
KMY
Certification:
CE,ROHS,FCC
Model Number:
KMY299B
Contact Us

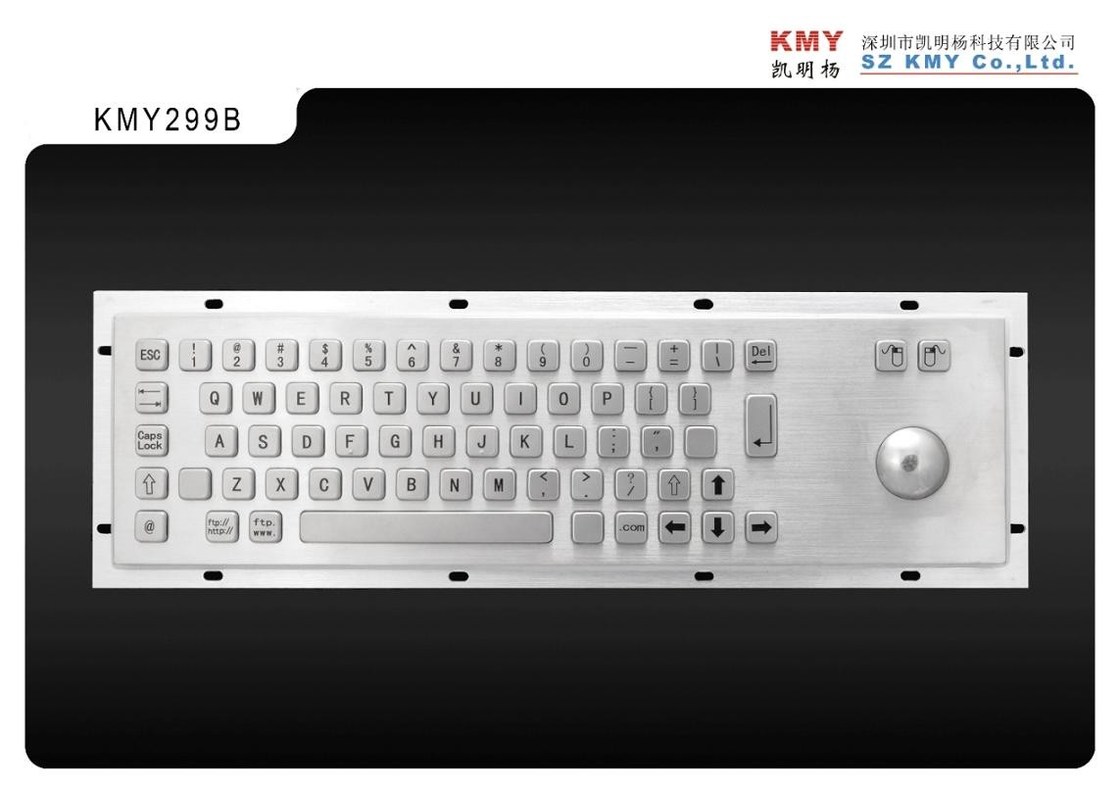

Interactive Kiosk Metal Keyboard IP65 Stainless Steel panel mount
Other country layouts on request
Other language versions / interfaces / configurations available on request.
Faceplate Dimensions(W×H): 392×110mm (see drawing as below)
KMY299B is made of high quality 304 stainless steel.Different language layout is available without additional charge.PS2 and USB can be optional.It is widely used on the kiosks and industrial equipments which need to be input varied informations.
Application
Ø Check-in Kiosk
Ø Boarding Kiosk
Ø Info-Kiosk
Ø Internet Kiosk
Ø Medical Kiosk
Ø Industrial control platform
Ø Gaming machine
Ø Access control platform
Physical Features
65 keys stainless steel panel mount keyboard
Support OS: Windows 95/98/NT/ME/2000/2003/XP/Vista, Linux and Unix
Waterproof and dustproof
Very rugged vandal proof design
Can be cleaned with soapy water, disinfectant or other cleaning agents
Carbon-on-Gold key switch technology PCB
PS/2 or USB interface available
Customized language layout available
Material:
Front Panel: High quality stainless steel
Keys: High quality stainless steel
Back panel: Aluminum
Trackball: High quality stainless steel
Dimensions:
Front Panel: 392 ×110mm
Overall: 415 x 134mm
Trackball: 38mm
Mechanical Performance:
Operating Temperature :0°to+70°
Storage Temperature : -25°to +100°
Relative humidity : 30%～90%
Atmospheric pressure: 60 to 106 kPa
Lifespan: >2 million operations per key
Key trip: 1.5mm
Key pressure: 0.8~1.6 N
Weight: 2.0kgs
Electrical Performance:
Voltage: 5.0VDC±5%
Electric current: 10mA
EMC Emission: EN55022
Reliability:
MTBF: >20,000 hours
MTTR: < 30 minutes
CE, FCC, RoHS compliant
Waterproof and dustproof Class: IP65
Vandal resistant: IK07
Drawing:
