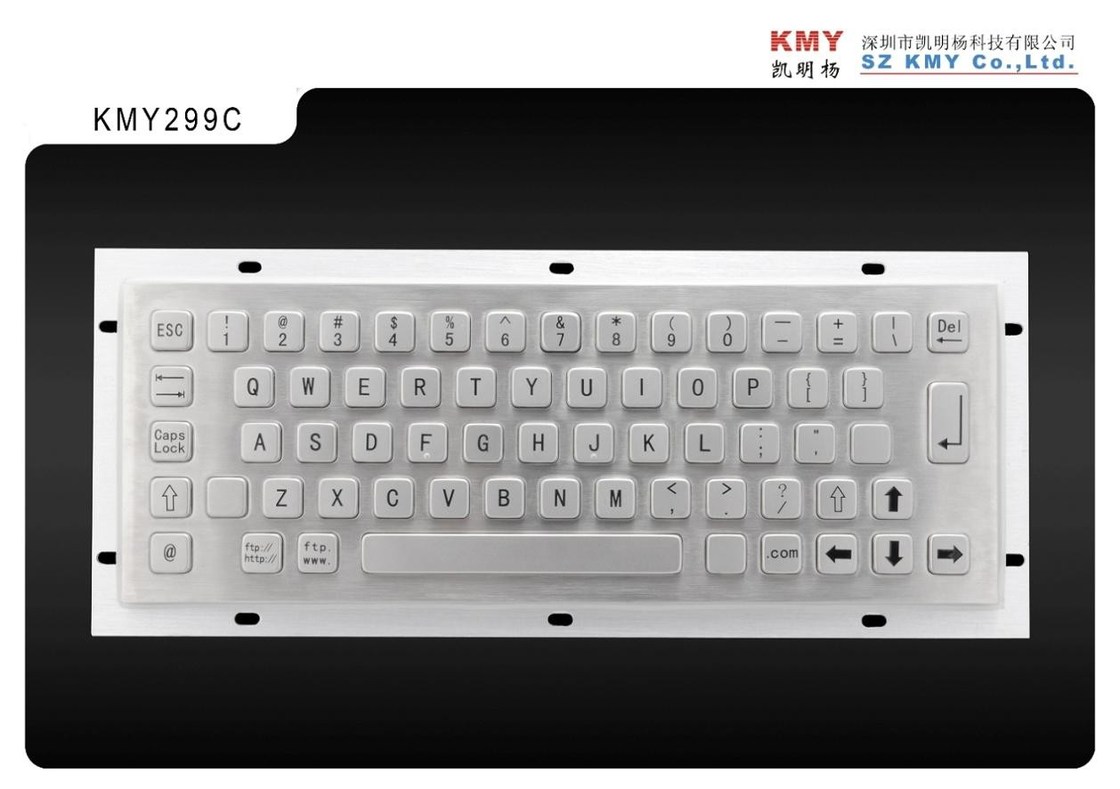

Panel Mount Kiosk Metal Keyboard / Metal Computer Keyboard 65 keys
KMY299C are is of high quality stainless steel, IP65, IK07, CE, FCC, RoHS certificated,
mainly used on ATM, self-service terminal/kiosk, industrial PCs, etc.
Dimensions:
Ø Front Panel: 300 ×110mm
Ø Overall: 324 ×134mm
Features:
Ø 65 keys stainless steel panel mount keyboard
Ø Support OS: Windows 95/98/NT/ME/2000/2003/XP/Vista, Linux and Unix
Ø Waterproof and dustproof
Ø Very rugged vandal proof design
Ø Can be cleaned with soapy water, disinfectant or other cleaning agents
Ø Carbon-on-Gold key switch technology PCB
Ø PS/2 or USB interface available
Ø Customized language layout available
Material:
Ø Front Panel: high quality stainless steel
Ø Keys: high quality stainless steel
Ø Back panel: Aluminum
Mechanical Performance:
Ø Operating Temperature:-10°to+50°
Ø Storage Temperature: -30°to +80°
Ø Relative humidity: 30%～95%
Ø Atmospheric pressure: 50 to 110kPa
Ø Lifespan: >1 million operations per key
Ø Key trip: 2mm
Ø Key pressure: 120g
Ø Weight: 1.6kg
Electrical Performance:
Ø Voltage: 5.0VDC±5%
Ø Electric current: 10mA
Ø EMC Emission: EN55022(B)
Reliability:
Ø MTBF: >20,000 hours
Ø MTTR: < 30 minutes
Ø CE, FCC, RoHS compliant
Ø Waterproof and dustproof Class: IP65
Ø Vandal resistant: IK07
