Place of Origin:
China
Brand Name:
KMY
Certification:
CE,ROHS,FCC
Model Number:
KMY299I-1
Contact Us
Outdoor Kiosk Metal Keyboard with Trackball , USB Numeric Keypad

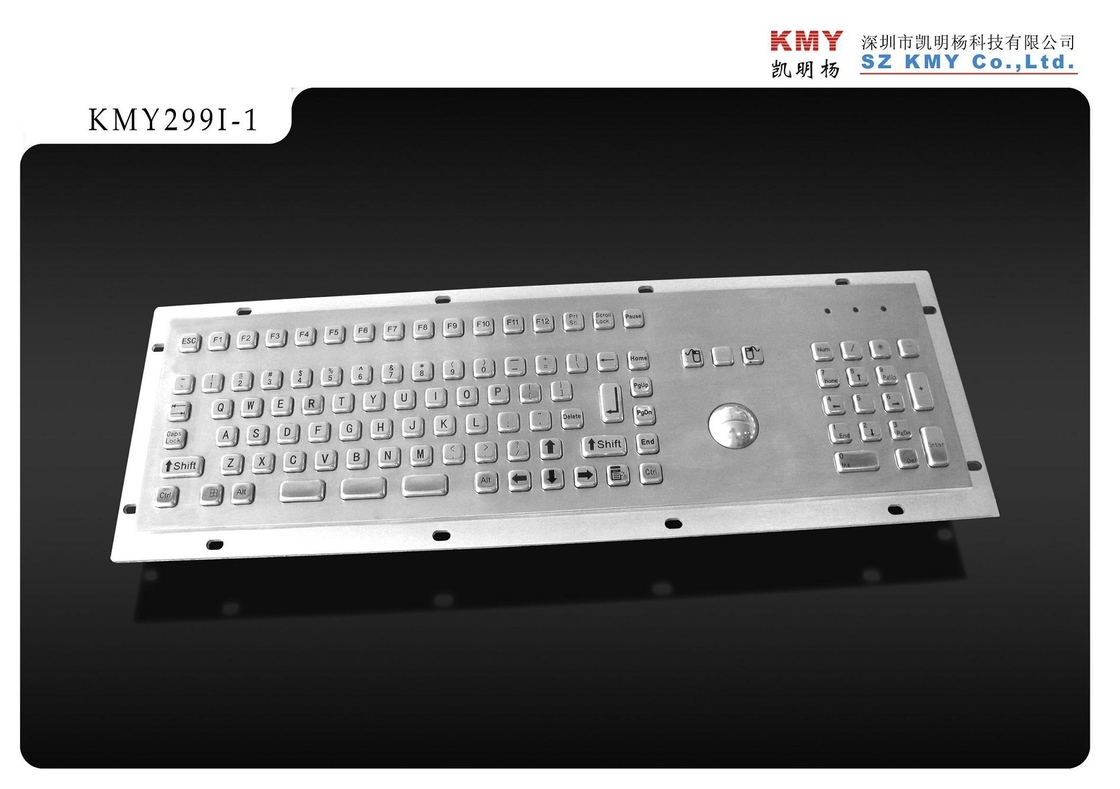

KMY299I-1 MINI Metal Keyboard
with Trackball and Numeric Keypad
Features:
Ø 104 keys stainless steel panel mount keyboard
Ø Support OS: Windows 95/98/NT/ME/2000/2003/XP/Vista, Linux and Unix
Ø Waterproof and dustproof
Ø Very rugged vandal proof design
Ø Can be cleaned with soapy water, disinfectant or other cleaning agents
Ø Carbon-on-Gold key switch technology PCB
Ø PS/2 or USB interface available
Ø Customized language layout available
Ø Optical trackball solution
Material:
Ø Front Panel: high quality stainless steel
Ø Keys: high quality stainless steel
Ø Trackball: high quality stainless steel
Ø Back panel: Aluminum
Dimensions:
Ø Front Panel: 370 ×110mm
Ø Overall: 394 ×134mm
Ø Trackball diameter: 25mm
Mechanical Performance:
Ø Operating Temperature:-10°to+50°
Ø Storage Temperature: -30°to +80°
Ø Relative humidity: 30%～95%
Ø Atmospheric pressure: 50 to 110kPa
Ø Lifespan: >1 million operations per key
Ø Key trip: 2mm
Ø Key pressure: 120g
Ø Weight: 2.0kg
Electrical Performance:
Ø Voltage: 5.0VDC±5%
Ø Electric current: 10mA
Ø EMC Emission: EN55022(B)
Ø Trackball resolution: >800 DPI
Reliability:
Ø MTBF: >20,000 hours
Ø MTTR: < 30 minutes
Ø CE, FCC, RoHS compliant
Ø Waterproof and dustproof Class: IP65
Ø Vandal resistant: IK07
