CE ROHS FCC Kiosk Metal Keyboard With Trackball PS2 USB Connector

CE ROHS FCC Kiosk Metal Keyboard With Trackball PS2 USB Connector

Waterproof Stainless Steel Kiosk Metal Keyboard FCC With U Shape Keys PS2 / USB Connector

Faceplate Dimensions(W×H):330×125mm (see drawing as below)

Waterproof Stainless Steel Kiosk Metal Keyboard FCC With U Shape Keys PS2 / USB Connector

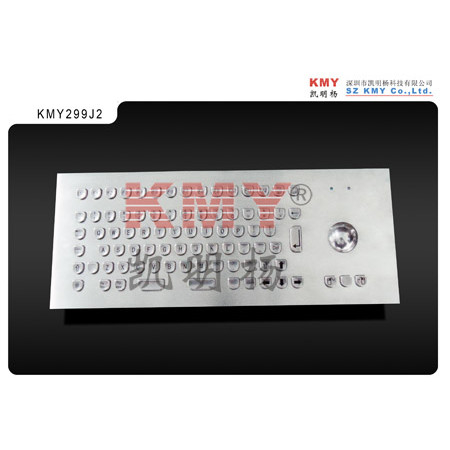

KMY299J-2 is made of high quality 304 stainless steel.Different language layout is available without additional charge.PS2 and USB interface can be optional.It is widely used on the kiosks and industrial equipments which need to be input varied informations.

Features:

Ø  80 keys stainless steel top panel mounting keyboard with trackball

Ø  Support OS: Windows 95/98/NT/ME/2000/2003/XP/Vista, Linux and Unix

Ø  Excellent tactile sense by special “U” shaped keys

Ø  Customized layout available

Ø  Lettering by etching and inking, or laser technology

Ø  Carbon-on-Gold key switch technology (silicon gel)

Ø  Waterproof and dustproof

Ø  Very rugged vandal proof design

Ø  Can be cleaned with soapy water, disinfectant or other cleaning agents

Material:

Ø  Front Panel: High quality 304# stainless steel

Ø  Keys: High quality 304# stainless steel

Ø  Trackball: High quality 304# stainless steel

Ø  Back panel: Aluminum alloy

Mechanical Data:

Ø  Key trip: 1.5mm

Ø  Key pressure: 0.8～1.6 N

Ø  Lifespan: >2 million operations per key

Ø  Gross Weight: 2.1 KGS

Electrical Data:

Ø  Input Voltage: 5.0VDC±5%

Ø  Electric Current: 10mA

Ø  EMC Emission: EN55022

Ø  ESD Standard: Air Discharge 8KV; Contact Discharge 6KV

Environmental Adaptability:

Ø  Operating Temperature: 0°～+60°

Ø  Storage Temperature: -25°～+80°

Ø  Relative humidity: 30%～90%

Ø  Atmospheric pressure: 60～106 KPa

Reliability:

Ø  MTBF: >20,000 hours

Ø  MTTR: < 30 minutes

Ø  CE, FCC, RoHS, ESD compliant

Ø  Waterproof and Dustproof class: IP65 (front panel)

Ø  Vandal resistant class: IK07
