Place of Origin:
China
Brand Name:
KMY
Certification:
CE,ROHS,FCC
Model Number:
KMY3502H
Contact Us

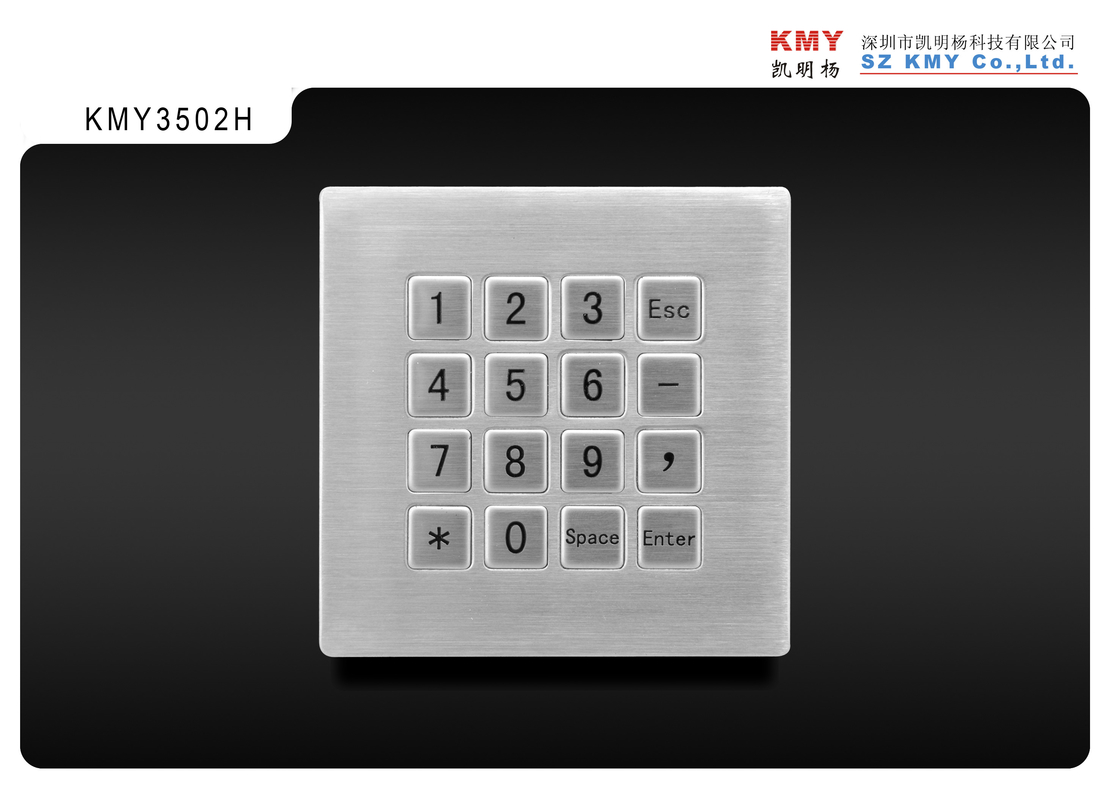

Stainless Steel Anti-vandal Waterproof Access Control System IP65 Metal Keypad

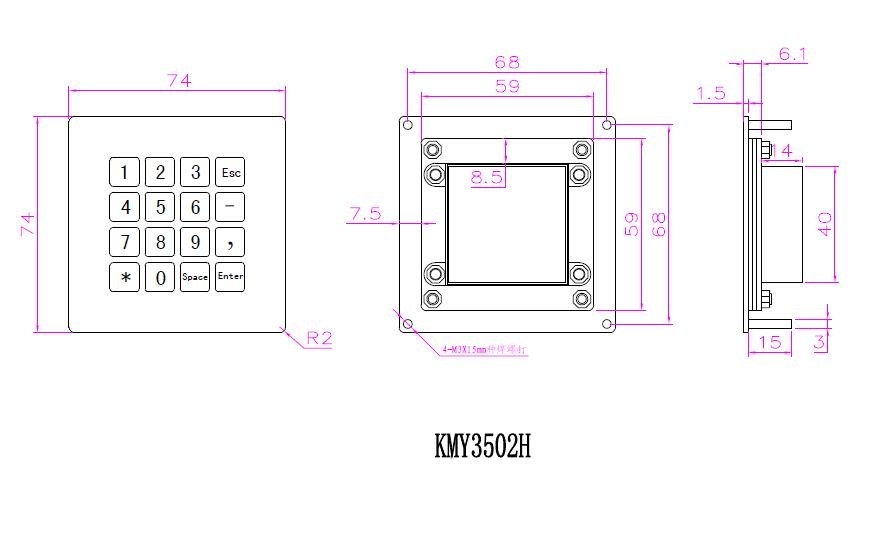

Faceplate Dimensions(W×H):74×74mm
KMY3502H is a stainless steel keypad with both numeric and function keys .
The layout could be any language and function keys could be customized .
rear mounting installation .
Application
Ø Check-in Kiosk
Ø Boarding Kiosk
Ø Info-Kiosk
Ø Internet Kiosk
Ø Medical Kiosk
Ø Industrial control platform
Ø Gaming machine
Ø Access control platform
Features
Ø Mini Keypad made of high quality stainless steel
Ø Customizable layout, dimension and installation design
Ø 16 keys: 10 numeric keys and 6 function keys
Ø Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof
Ø Ports for optional eight external function keys, beeper and guide light
Ø IP Protection Class IEC/DIN/EN/ 60529:IP65
Ø IK Protection Class DIN EN 50102:IK07
Reliability and Performance Data
Ø Key lifetime > 2,000,000 cycles per key
Ø Force on keys: 2.5~3.5 N
Ø Key travel: >0.45mm
Ø Wide voltage input: 5V DC +/- 10%
Environment Requirements
Ø Only the front panels shall be exposed to outdoor climate. The panels are dustproof, waterproof, shake-proof, pickproof, drill-proof and bombproof.
Ø Operating temperature range: 0℃‑ 60℃
Ø Storage temperature range: –25℃ - 80℃
Ø Relative humidity: 30%～90%
Ø Atmospheric pressure: 60～106 KPa
