Place of Origin:
China
Brand Name:
KMY
Certification:
CE,ROHS,FCC
Model Number:
KMY3502A-120
Contact Us

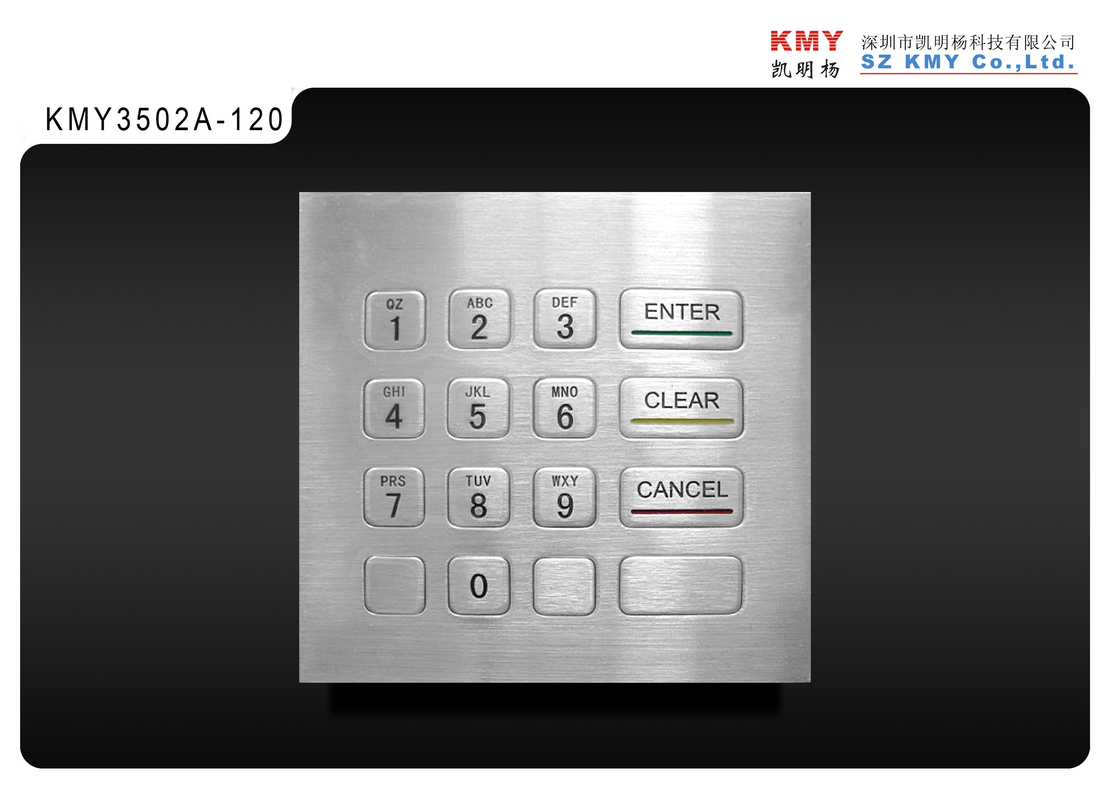

Interactive Kiosk Metal Keyboard Vandalproof Keypad With Numeric And Function Keys
Faceplate Dimensions(W×H):120×120mm (see drawing as below)
KMY3502A-120 is a stainless steel keypad with both numeric and function keys .
The layout could be any language and function keys could be customized .
Front mounting installation .
Application
Ø Check-in Kiosk
Ø Boarding Kiosk
Ø Info-Kiosk
Ø Internet Kiosk
Ø Medical Kiosk
Ø Industrial control platform
Ø Gaming machine
Ø Access control platform
Physical Features
Ø Keypad made of high quality stainless steel
Ø Customizable layout, dimension and installation design
Ø Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof
Ø Ports for optional eight external function keys, beeper and guide light
Ø IP Protection Class IEC/DIN/EN/ 60529:IP65
Ø IK Protection Class DIN EN 50102:IK07
Ø GW: 0.5KG
Reliability and Performance Data
Ø Key lifetime > 2,000,000 cycles per key
Ø Force on keys: 3~5 N
Ø Key travel: 0.45mm
Ø Wide voltage input: 5V DC +/- 20%
Ø In running state, 5 V +/- 20% is needed; the electrical current is up to 100 mA and the actual power consumption is below 1.5W.
Ø Running lifetime > 5 years; Battery lifetime > 5 years (without external power supply)
Environment Requirements
Ø Only the front panels shall be exposed to outdoor climate. The panels are dustproof, waterproof, shake-proof, pickproof, drill-proof and bombproof.
Ø Operating temperature range: 0℃‑ 45℃
Ø Storage temperature range: –25℃ - 65℃
Ø Maximum humidity in operating environment: 80%
