Place of Origin:
China
Brand Name:
KMY
Certification:
CE,ROHS,FCC
Model Number:
KMY299D-345
Contact Us

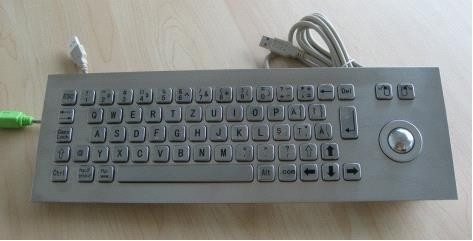

IP65 Anti-vandal Stainless Steel Industrial Rugged Metal Keyboard with Trackball
Faceplate Dimensions(W×H):345×115mm (see drawing as below)
KMY299D-345 is made of high quality 304 stainless steel.Different language layout is available without additional charge.PS2 and USB interface can be optional.It is widely used on the kiosks and industrial equipments which need to be input varied informations.
Features:
Ø 65 keys stainless steel panel mount keyboard
Ø Support OS: Windows 95/98/NT/ME/2000/2003/XP/Vista, Linux and Unix
Ø Waterproof and dustproof
Ø Very rugged vandal proof design
Ø Can be cleaned with soapy water, disinfectant or other cleaning agents
Ø Carbon-on-Gold key switch technology PCB
Ø PS/2 or USB interface available
Ø Customized language layout available
Material:
Ø Front Panel: High quality stainless steel
Ø Keys: High quality stainless steel
Ø Back panel: Aluminum
Ø Trackball: High quality stainless steel
Dimensions:
Ø Front Panel: 345 ×115mm
Mechanical Performance:
Ø Operating Temperature:0°to+45°
Ø Storage Temperature: -25°to +65°
Ø Relative humidity: 30%~90%
Ø Atmospheric pressure: 50 to 110kPa
Ø Lifespan: >2 million operations per key
Ø Key trip: 1.5mm
Ø Key pressure: 120g
Ø Weight: 1.5kg
Electrical Performance:
Ø Voltage: 5.0VDC±5%
Ø Electric current: 10mA
Ø EMC Emission: EN55022
Reliability:
Ø MTBF: >20,000 hours
Ø MTTR: < 30 minutes
Ø CE, FCC, RoHS compliant
Ø Waterproof and dustproof Class: IP65
Ø Vandal resistant: IK07
