400×124mm Steel Mechanical Keyboard Full Metal Keyboard Support Linux Unix

400×124mm Steel Mechanical Keyboard Full Metal Keyboard Support Linux Unix

Linux Unix Full Metal Keyboard

400×124mm Full Metal Keyboard

400×124mm Steel Mechanical Keyboard

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Support OS:
Windows 95/98/NT/ME/2000/2003/XP/Vista, Linux And Unix
Stainless Steel
IP Protection Class:
IEC/DIN/EN/ 60529:IP65
Mouse Type:
Payment & Shipping Terms
Minimum Order Quantity
It depends on quantity
Packaging Details
High quality carton with customized foam inside
Delivery Time
Within 3 working days for sample(US layout)
Payment Terms
T/T.west union
Supply Ability
3000pcs per month
Product Description

Interactive Digital Signage Kiosk Stainless Steel Waterproof Metal Keyboard with Trackball



Faceplate Dimensions(W×H):400×124mm (see drawing as below)

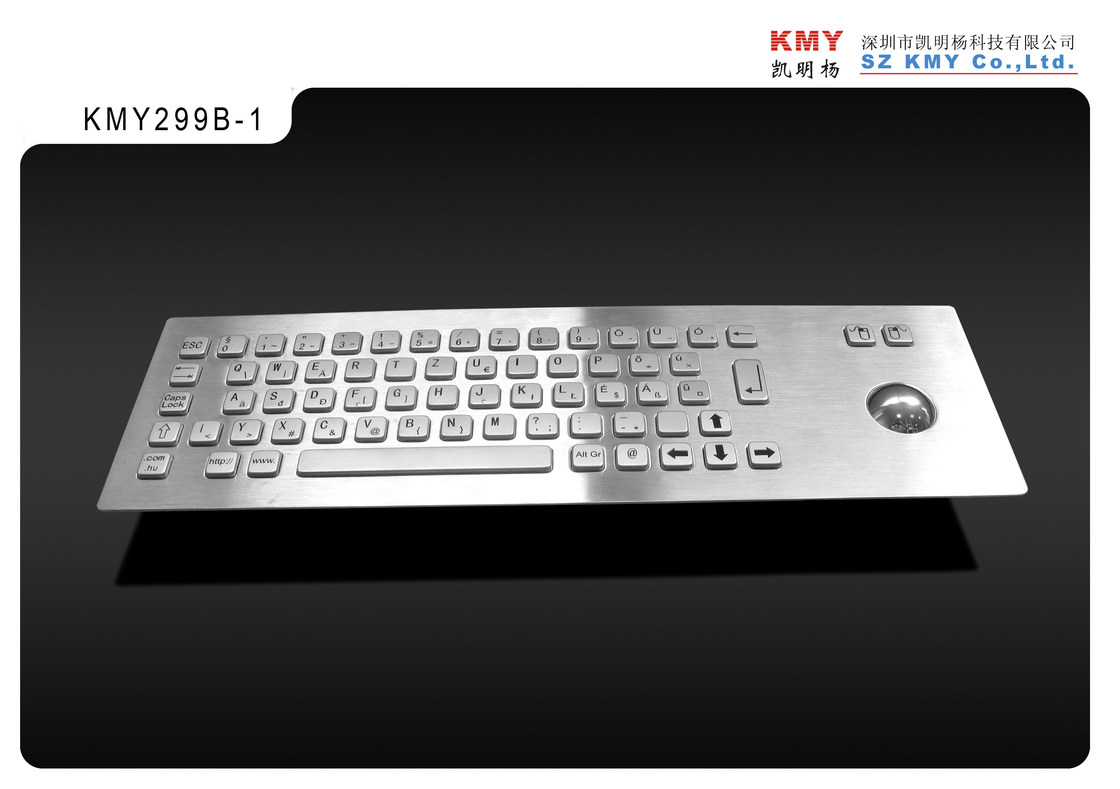

KMY299B-1 is made of high quality 304 stainless steel.Different language layout is available without additional charge.PS2 and USB interface can be optional.It is widely used on the kiosks and industrial equipments which need to be input varied informations.



Ø   Check-in Kiosk

Ø   Boarding Kiosk

Ø   Info-Kiosk

Ø   Internet Kiosk

Ø   Medical Kiosk

Ø   Industrial control platform

Ø   Gaming machine

Ø   Access control platform





Ø  Front Panel: High quality stainless steel

Ø  Keys: High quality stainless steel

Ø  Back panel: Aluminum

Ø  Trackball: High quality stainless steel





Ø  Front Panel: 400 ×124mm




Mechanical Performance:

Ø  Operating Temperature:-10°to+50°

Ø  Storage Temperature: -30°to +80°

Ø  Relative humidity: 30%~95%

Ø  Atmospheric pressure: 50 to 110kPa

Ø  Lifespan: >1 million operations per key

Ø  Key trip: 2mm

Ø  Key pressure: 120g

Ø  Weight: 2.1kg




Electrical Performance:

Ø  Voltage: 5.0VDC±5%

Ø  Electric current: 10mA

Ø  EMC Emission: EN55022(B)





Ø  MTBF: >20,000 hours

Ø  MTTR: < 30 minutes

Ø  CE, FCC, RoHS compliant

Ø  Waterproof and dustproof Class: IP65

Ø  Vandal resistant: IK07
